L10P.0200.2.02 EG55
Material number L10P0200202EG55

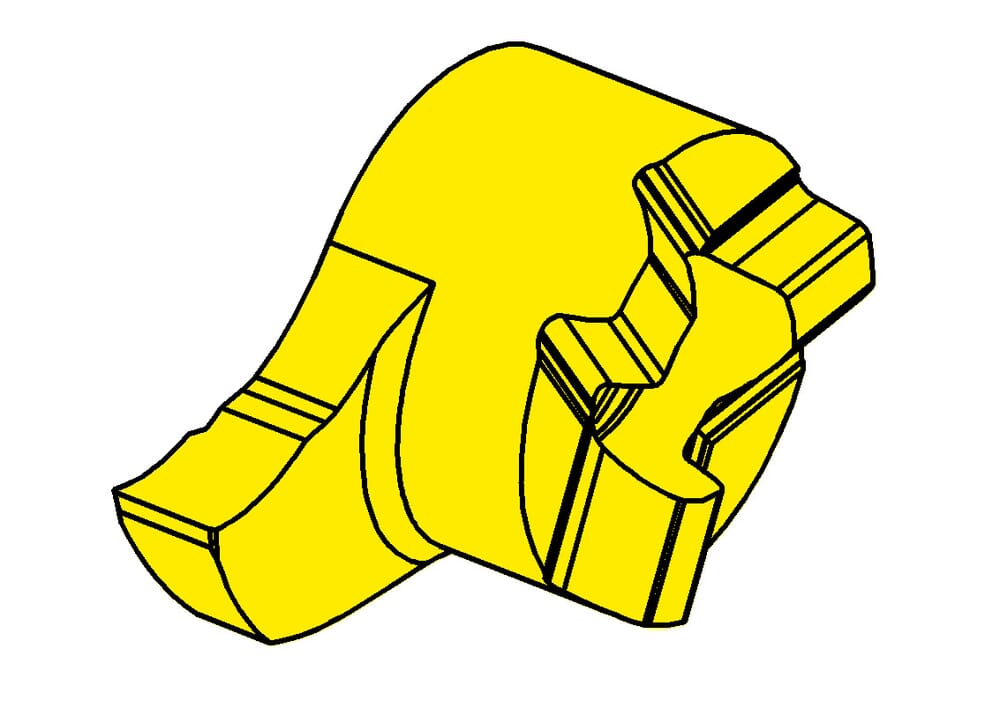

HORN Insert L10P.0200.2.02 EG55 for Turning
Width of groove (mm) (w)
0.079 ˝
2 mm
tool-application
static
machining-direction-sap
left
Smallest bore diameter (Dmin)
0.394 ˝
10 mm
Cutting insert height, Cutting insert thickness (s)
0.142 ˝
3.6 mm
Tooth diameter, head diameter (d)
0.236 ˝
6 mm
Setting range radial (f)
0.256 ˝
6.5 mm
Head size (a)
0.374 ˝
9.5 mm
Corner radius (r)
0.008 ˝
0.2 mm
Katalog_SSC
10P060L
Maximum depth of groove (tmax)
0.118 ˝
3 mm
| Downloads | |
|---|---|
| L10P_0200_2_02_EG55-DXF.DXF | Download |
| L10P_0200_2_02_EG55-STP.STP | Download |
| L10P_0200_2_02_EG55-ISO.XML | Download |
| L10P_0200_2_02_EG55-DIN.XML | Download |
| Download all files | |
