L10P.0100.2.00 EG55

Recommended:

Also suitable for:

Material number L10P0100200EG55

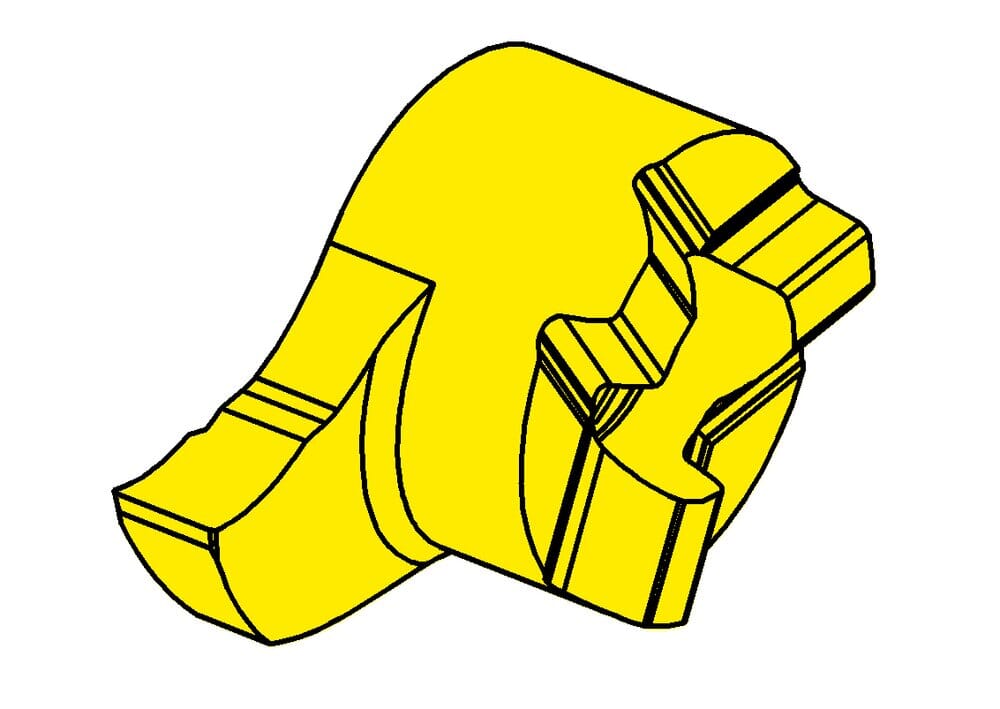

HORN Insert L10P.0100.2.00 EG55 for Turning

Note: Inserts ending in '.00' have a .002" x 45? (0.05mm) corner chamfer.

Tooth diameter, head diameter (d)

0.236 ˝

6 mm

us-cutting

Yes

cutting

tool-application

static

machining-direction-sap

left

Smallest bore diameter (Dmin)

0.394 ˝

10 mm

Cutting insert height, Cutting insert thickness (s)

0.142 ˝

3.6 mm

Head size (a)

0.374 ˝

9.5 mm

Setting range radial (f)

0.256 ˝

6.5 mm

Width of groove (mm) (w)

0.039 ˝

1 mm

Katalog_SSC

10P060L

Maximum depth of groove (tmax)

0.118 ˝

3 mm
