L10P.0100.1.00 TH35

Recommended:

Also suitable for:

Material number L10P0100100TH35

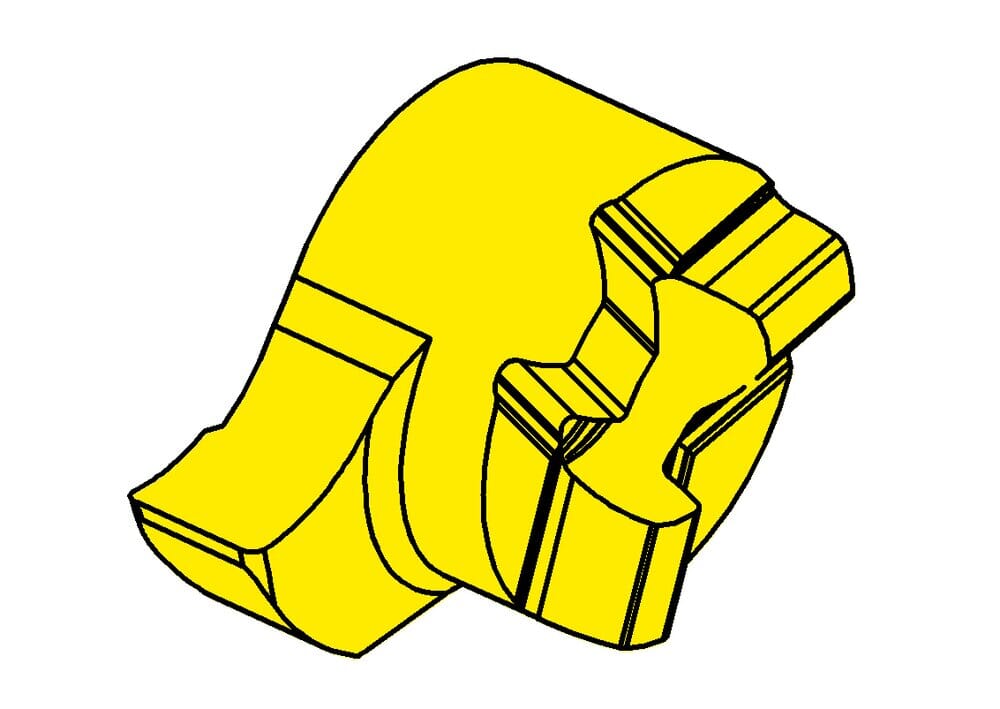

HORN Insert L10P.0100.1.00 TH35 for Turning

Note: Inserts ending in '.00' have a .002" x 45? (0.05mm) corner chamfer.

Cutting insert height, Cutting insert thickness (s)

0.142 ˝

3.6 mm

us-cutting

Yes

tool-application

static

machining-direction-sap

left

Smallest bore diameter (Dmin)

0.354 ˝

9 mm

Head size (a)

0.335 ˝

8.5 mm

Tooth diameter, head diameter (d)

0.236 ˝

6 mm

Setting range radial (f)

0.217 ˝

5.5 mm

Width of groove (mm) (w)

0.039 ˝

1 mm

Katalog_SSC

10P060L

Maximum depth of groove (tmax)

0.079 ˝

2 mm
