L109.4545.3.6 TH35
Recommended:
Also suitable for:
Material number L109454536TH35

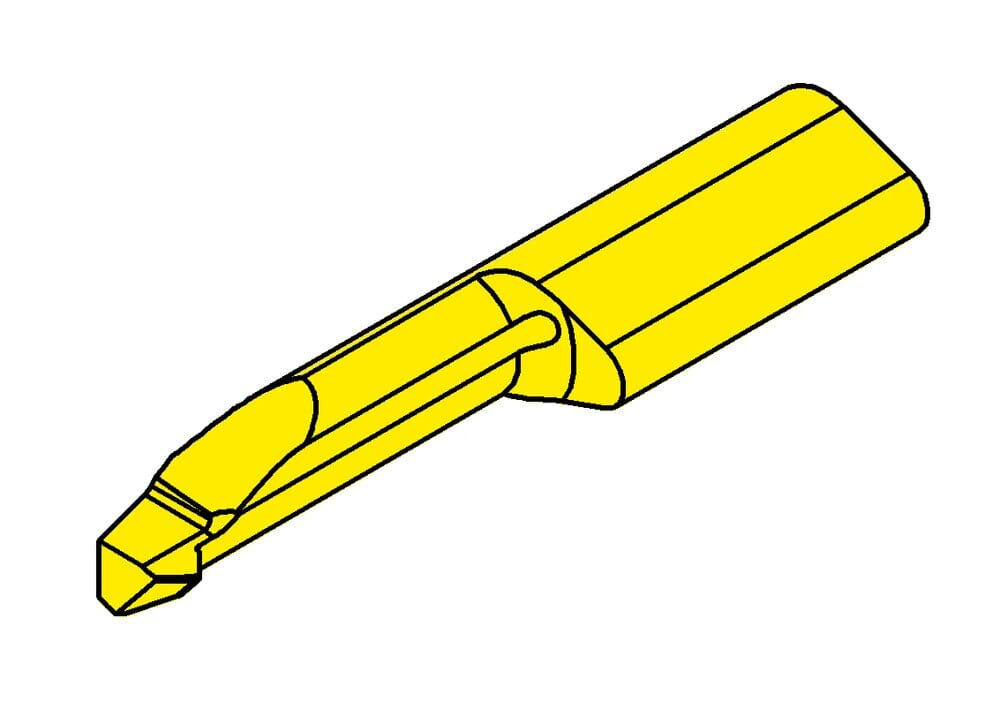

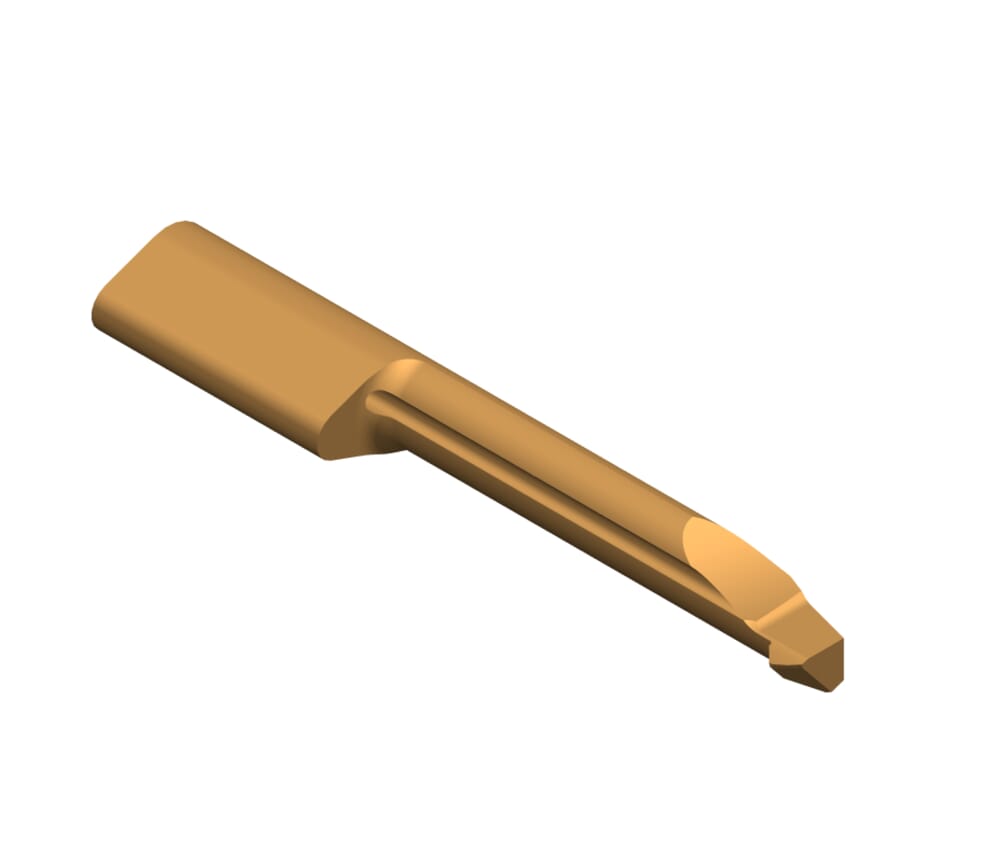

HORN insert L109.4545.3.6 TH35 for Turning
machining-direction-sap
left
Setting range radial (f)
0.11 ˝
2.8 mm
Total length (l5)
1.496 ˝
38 mm
Smallest bore diameter (Dmin)
0.236 ˝
6 mm
tool-application
static
Neck diameter (d)
0.169 ˝
4.3 mm
us-cutting
Yes
Top radius (r)
0.008 ˝
0.2 mm
Neck length (l2)
0.787 ˝
20 mm
Adjustment dimension cutting center (E)
0.047 ˝
1.2 mm
Head size (a)
0.224 ˝
5.7 mm
Maximum depth of groove (tmax)
0.035 ˝
0.9 mm
Katalog_SSC
109140
| Downloads | |
|---|---|
| L109_4545_3_6_TH35-DXF.DXF | Download |
| L109_4545_3_6_TH35-STP.STP | Download |
| L109_4545_3_6_TH35-ISO.XML | Download |
| L109_4545_3_6_TH35-DIN.XML | Download |
| Download all files | |
