L109.1828.2.6 TH35
Recommended:
Also suitable for:
Material number L109182826TH35

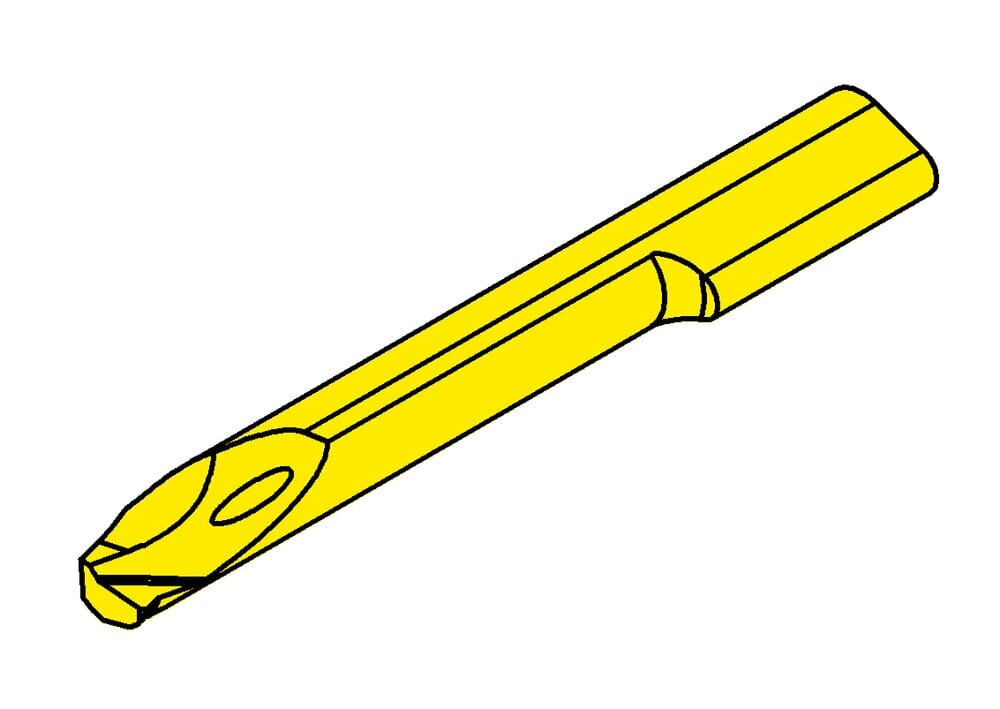

HORN Insert L109.1828.2.6 TH35 for Turning
Setting range radial (f)
0.11 ˝
2.8 mm
us-cutting
Yes
tool-application
static
machining-direction-sap
left
Smallest bore diameter (Dmin)
0.236 ˝
6 mm
Total length (l5)
1.299 ˝
33 mm
Neck length (l2)
0.591 ˝
15 mm
Neck diameter (d)
0.197 ˝
5 mm
Katalog_SSC
109140
Top radius (r)
0.008 ˝
0.2 mm
Maximum depth of groove (tmax)
0.016 ˝
0.4 mm
Head size (a)
0.224 ˝
5.7 mm
| Downloads | |
|---|---|
| L109_1828_2_6_TH35-DXF.DXF | Download |
| L109_1828_2_6_TH35-DIN.XML | Download |
| L109_1828_2_6_TH35-STP.STP | Download |
| L109_1828_2_6_TH35-ISO.XML | Download |
| Download all files | |
