L109.1828.1.6 TH35
Recommended:
Also suitable for:
Material number L109182816TH35

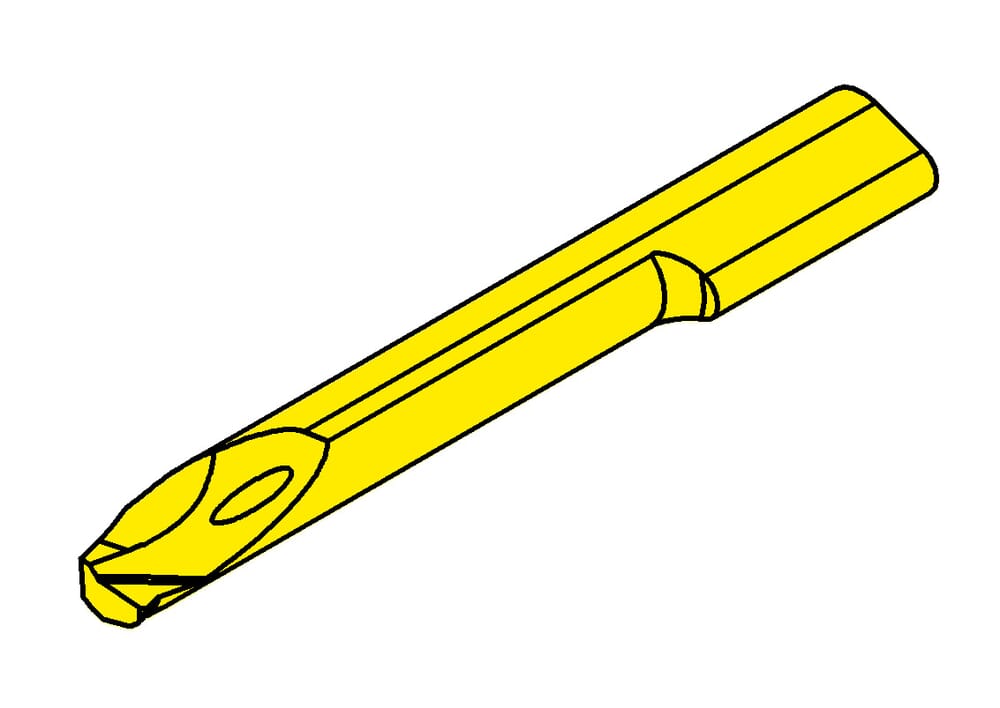

HORN insert L109.1828.1.6 TH35 for Turning
Neck diameter (d)
0.197 ˝
5 mm
machining-direction-sap
left
tool-application
static
Smallest bore diameter (Dmin)
0.236 ˝
6 mm
Total length (l5)
1.102 ˝
28 mm
Setting range radial (f)
0.11 ˝
2.8 mm
Neck length (l2)
0.394 ˝
10 mm
Katalog_SSC
109140
Top radius (r)
0.008 ˝
0.2 mm
Maximum depth of groove (tmax)
0.016 ˝
0.4 mm
Head size (a)
0.224 ˝
5.7 mm
