L109.1828.04.6.HV6 TH35
Recommended:
Also suitable for:
Material number L1091828046HV6TH35

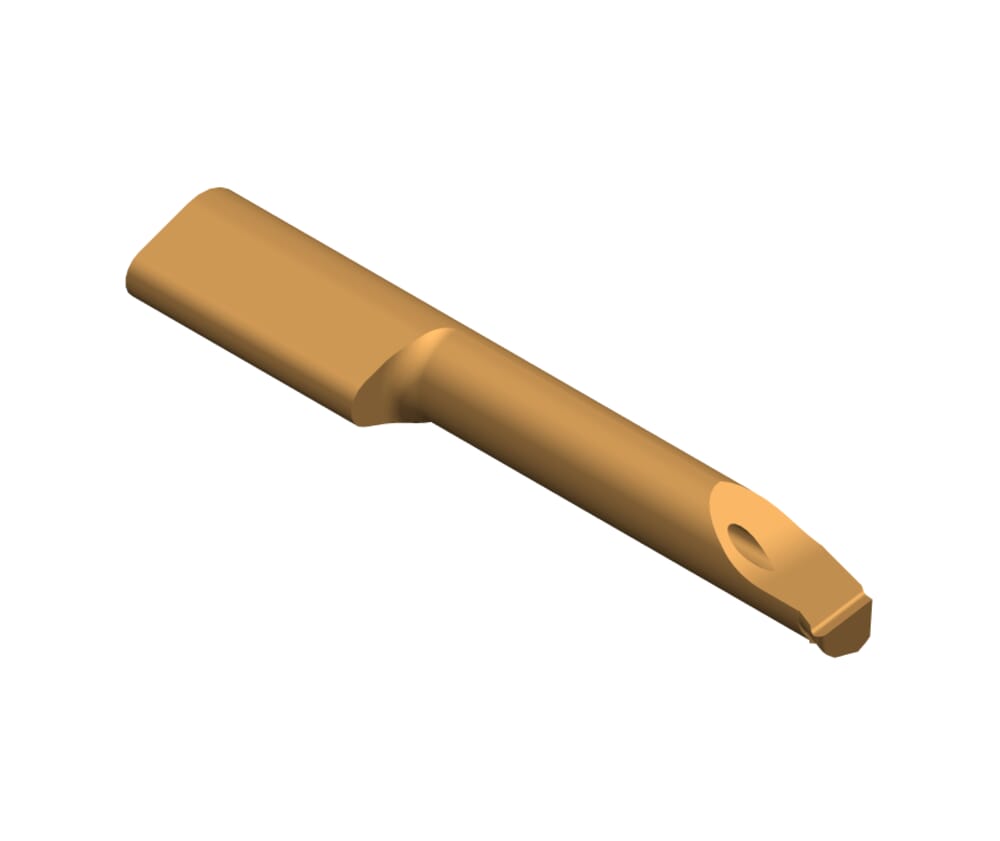

HORN insert L109.1828.04.6.HV6 TH35 for Turning
Setting range radial (f)
0.11 ˝
2.8 mm
us-cutting
Yes
machining-direction-sap
left
tool-application
static
Smallest bore diameter (Dmin)
0.236 ˝
6 mm
Total length (l5)
2.087 ˝
53 mm
Neck length (l2)
1.378 ˝
35 mm
Neck diameter (d)
0.197 ˝
5 mm
Katalog_SSC
109140
Top radius (r)
0.016 ˝
0.4 mm
Maximum depth of groove (tmax)
0.016 ˝
0.4 mm
Head size (a)
0.224 ˝
5.7 mm
