L109.0815.5.7 TH35
Recommended:
Also suitable for:
Material number L109081557TH35

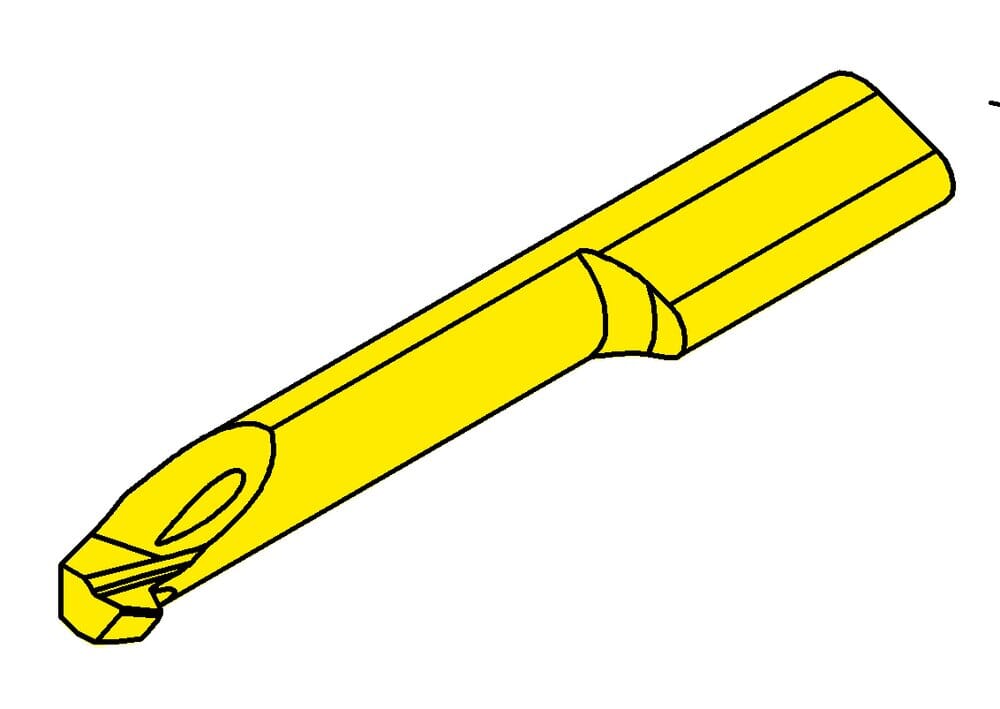

HORN insert L109.0815.5.7 TH35 for Gewinden
tool-application
static
Setting length (E)
0.035 ˝
0.9 mm
Smallest bore diameter (Dmin)
0.276 ˝
7 mm
Pitch (P)
0.059 ˝
1.5 mm
Maximum pitch (Pmax)
0.069 ˝
1.75 mm
Cutting insert width (a)
0.264 ˝
6.7 mm
machining-direction-sap
left
cutting
1
Neck length (l2)
1.181 ˝
30 mm
Setting range radial (f)
0.15 ˝
3.8 mm
Neck diameter (d)
0.201 ˝
5.1 mm
Katalog_SSC
109140
Cutting insert total length (l5)
1.89 ˝
48 mm
| Downloads | |
|---|---|
| L109_0815_5_7_TH35-STP.STP | Download |
| L109_0815_5_7_TH35-ISO.XML | Download |
| L109_0815_5_7_TH35-DIN.XML | Download |
| Download all files | |
