L109.0150.6.7 TH35
Recommended:
Also suitable for:
Material number L109015067TH35

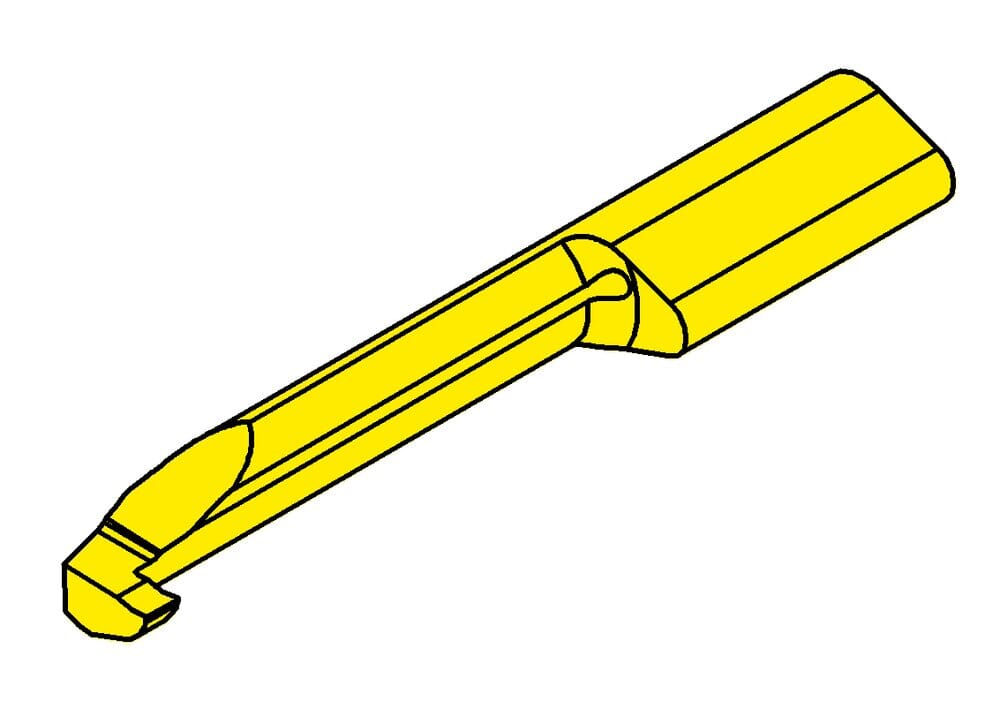

HORN insert L109.0150.6.7 TH35 for Turning
Neck diameter (d)
0.157 ˝
4 mm
machining-direction-sap
left
tool-application
static
Smallest bore diameter (Dmin)
0.276 ˝
7 mm
Total length (l5)
2.087 ˝
53 mm
Setting range radial (f)
0.15 ˝
3.8 mm
Neck length (l2)
1.378 ˝
35 mm
Width of groove (mm) (w)
0.059 ˝
1.5 mm
Katalog_SSC
109140
Maximum depth of groove (tmax)
0.098 ˝
2.5 mm
Head size (a)
0.264 ˝
6.7 mm
| Downloads | |
|---|---|
| L109_0150_6_7_TH35-DXF.DXF | Download |
| L109_0150_6_7_TH35-DIN.XML | Download |
| L109_0150_6_7_TH35-STP.STP | Download |
| L109_0150_6_7_TH35-ISO.XML | Download |
| Download all files | |
