L109.0005.4.6 TH35
Recommended:
Also suitable for:
Material number L109000546TH35

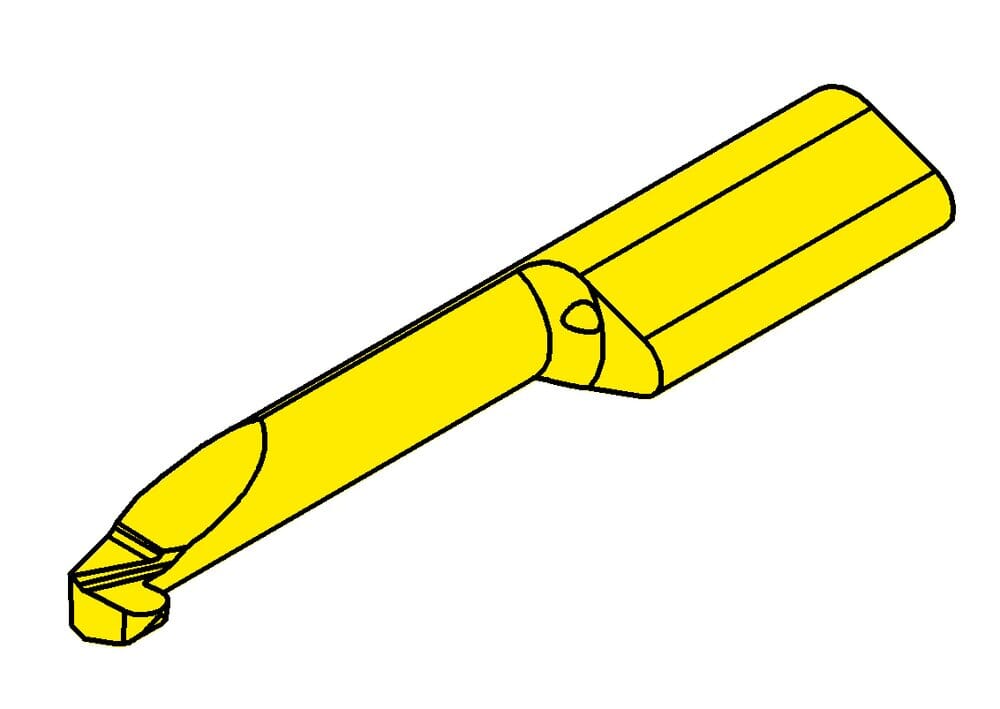

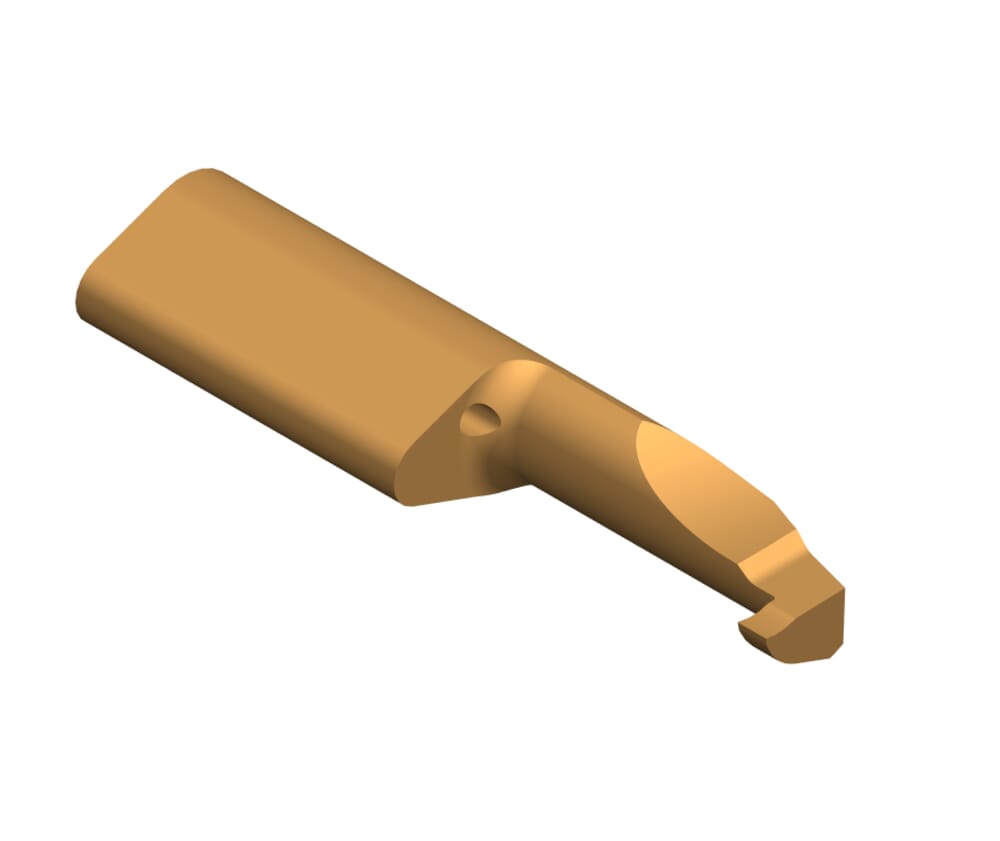

HORN insert L109.0005.4.6 TH35 for Turning
machining-direction-sap
left
Setting range radial (f)
0.11 ˝
2.8 mm
Total length (l5)
1.693 ˝
43 mm
Smallest bore diameter (Dmin)
0.236 ˝
6 mm
tool-application
static
Neck diameter (d)
0.146 ˝
3.7 mm
us-cutting
Yes
Neck length (l2)
0.984 ˝
25 mm
Head size (a)
0.224 ˝
5.7 mm
Maximum depth of groove (tmax)
0.071 ˝
1.8 mm
Full radius (r)
0.02 ˝
0.5 mm
Katalog_SSC
109140
Width of groove (w)
0.039 ˝
1 mm
| Downloads | |
|---|---|
| L109_0005_4_6_TH35-DXF.DXF | Download |
| L109_0005_4_6_TH35-STP.STP | Download |
| L109_0005_4_6_TH35-ISO.XML | Download |
| L109_0005_4_6_TH35-DIN.XML | Download |
| Download all files | |
