L108.4748.02 TH35

Recommended:

Also suitable for:

Material number L108474802TH35

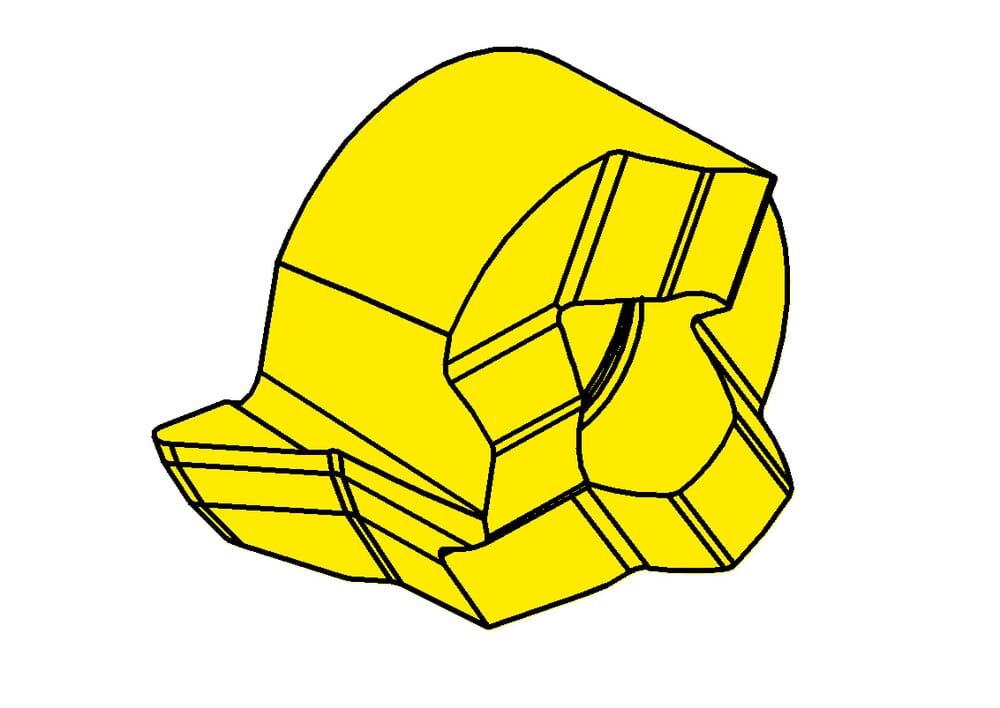

HORN Insert L108.4748.02 TH35 for Turning

Tooth diameter, head diameter (d)

0.236 ˝

6 mm

cutting

tool-application

static

machining-direction-sap

left

Smallest bore diameter (Dmin)

0.307 ˝

7.8 mm

Cutting insert height, Cutting insert thickness (s)

0.126 ˝

3.2 mm

Top radius (r)

0.008 ˝

0.2 mm

Setting range radial (f)

0.183 ˝

4.65 mm

Katalog_SSC

108060L

Maximum depth of groove (tmax)

0.047 ˝

1.2 mm

Head size (a)

0.301 ˝

7.65 mm
