L108.1846.02 TI25

Recommended:

Also suitable for:

Material number L108184602TI25

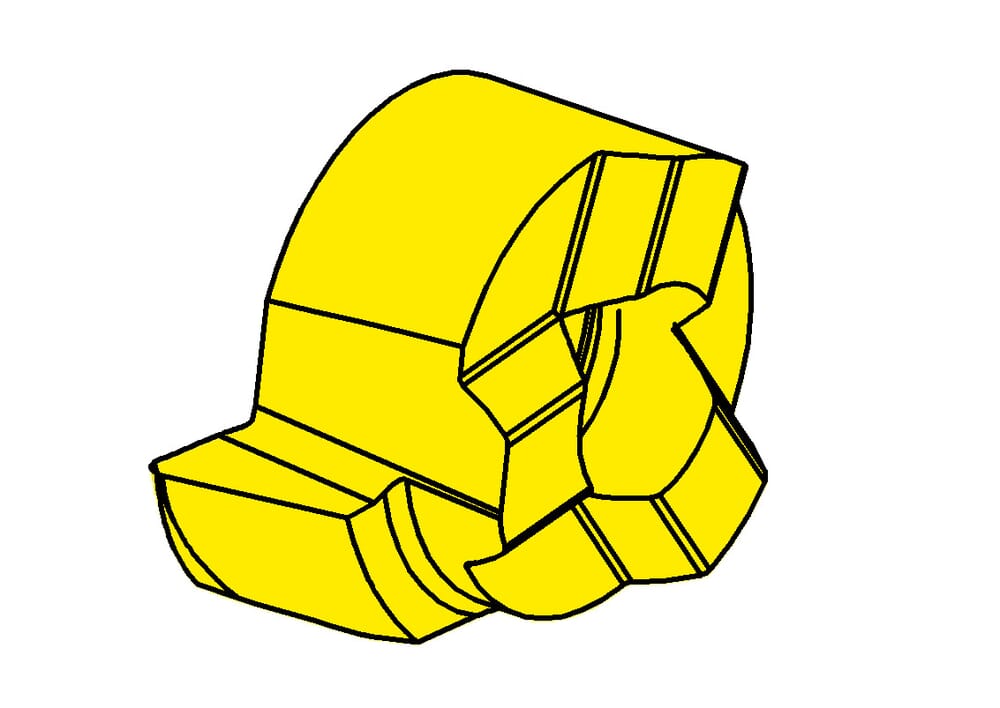

HORN Inserts L108.1846.02 TI25 for Turning

Smallest bore diameter (Dmin)

0.307 ˝

7.8 mm

us-cutting

Yes

cutting

tool-application

static

machining-direction-sap

left

Top radius (r)

0.008 ˝

0.2 mm

Cutting insert height, Cutting insert thickness (s)

0.134 ˝

3.4 mm

Tooth diameter, head diameter (d)

0.236 ˝

6 mm

Setting range radial (f)

0.183 ˝

4.65 mm

Katalog_SSC

108060L

Head size (a)

0.301 ˝

7.65 mm
