L107.4545.1.02 TH35

Recommended:

Also suitable for:

Material number L1074545102TH35

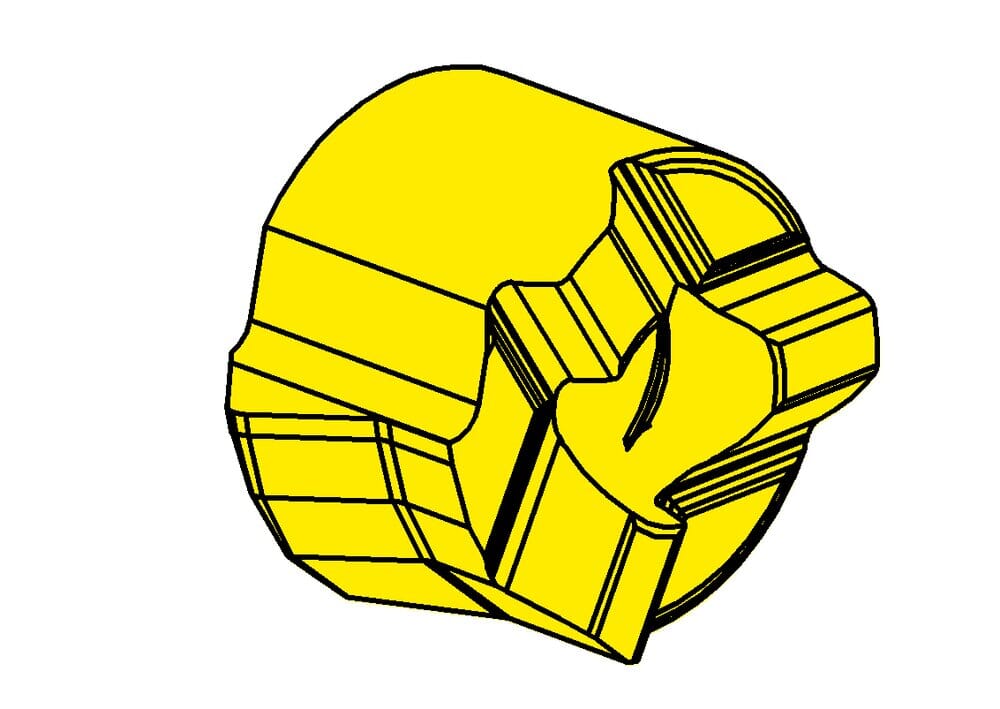

HORN Insert L107.4545.1.02 TH35 for Turning

Setting length (E)

0.087 ˝

2.2 mm

us-cutting

Yes

tool-application

static

machining-direction-sap

left

Smallest bore diameter (Dmin)

0.268 ˝

6.8 mm

Cutting insert height, Cutting insert thickness (s)

0.138 ˝

3.5 mm

Top radius (r)

0.008 ˝

0.2 mm

Tooth diameter, head diameter (d)

0.205 ˝

5.2 mm

Setting range radial (f)

0.15 ˝

3.8 mm

Katalog_SSC

107052L

Maximum depth of groove (tmax)

0.031 ˝

0.8 mm

Head size (a)

0.252 ˝

6.4 mm
