L107.1837.02 TH35

Recommended:

Also suitable for:

Material number L107183702TH35

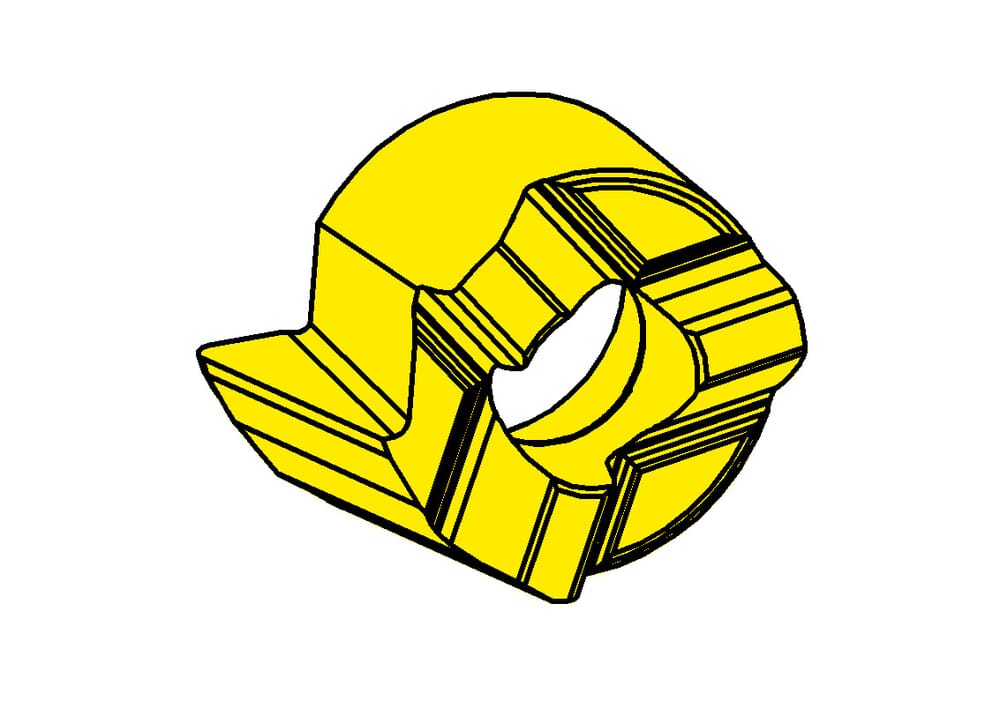

HORN Insert L107.1837.02 TH35 for Turning

Smallest bore diameter (Dmin)

0.268 ˝

6.8 mm

us-cutting

Yes

tool-application

static

machining-direction-sap

left

Top radius (r)

0.008 ˝

0.2 mm

Cutting insert height, Cutting insert thickness (s)

0.13 ˝

3.3 mm

Tooth diameter, head diameter (d)

0.205 ˝

5.2 mm

Setting range radial (f)

0.146 ˝

3.7 mm

Katalog_SSC

107052L

Head size (a)

0.248 ˝

6.3 mm
