L107.0815.1.01 TH35

Recommended:

Alternative Recommendation:

Material number L1070815101TH35

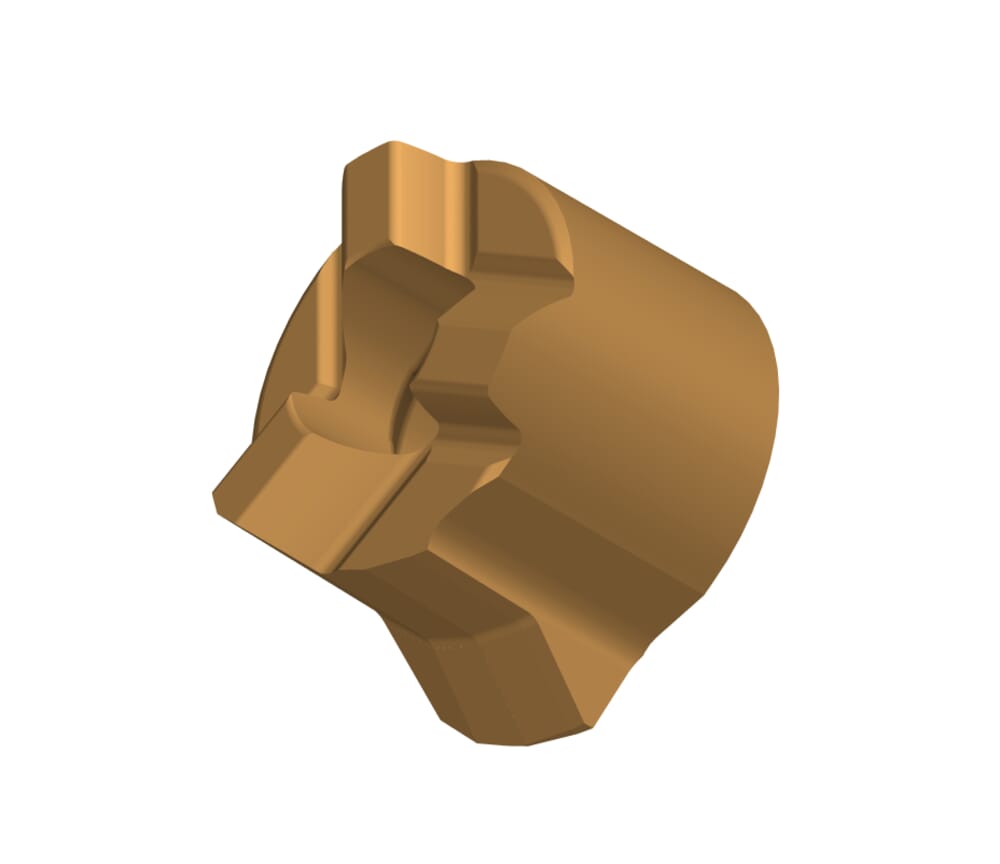

HORN Insert L107.0815.1.01 TH35 for Gewinden

Cutting insert height, Cutting insert thickness (s)

0.138 ˝

3.5 mm

tool-application

static

machining-direction-sap

left

Maximum pitch (Pmax)

0.069 ˝

1.75 mm

Pitch (P)

0.059 ˝

1.5 mm

Smallest bore diameter (Dmin)

0.276 ˝

7 mm

Setting length (E)

0.102 ˝

2.6 mm

Tooth diameter, head diameter (d)

0.205 ˝

5.2 mm

Cutting insert width (a)

0.26 ˝

6.6 mm

Setting range radial (f)

0.157 ˝

4 mm

Katalog_SSC

107052L
