L105.8V25.1.9 EG35
Recommended:
Material number L1058V2519EG35

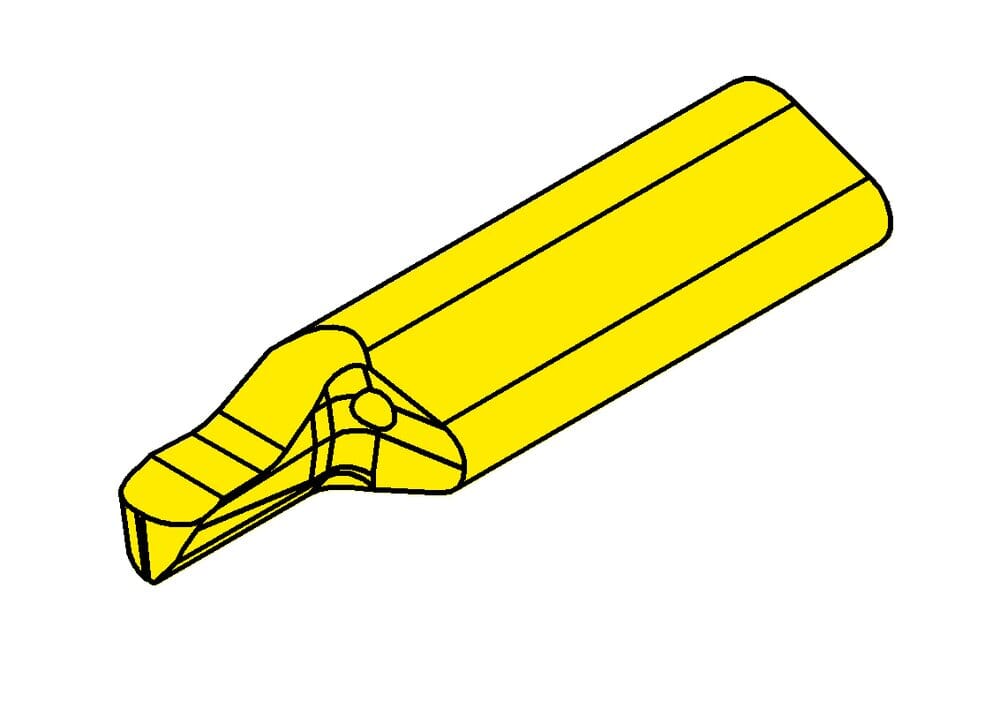

HORN Insert L105.8V25.1.9 EG35 for Turning
Katalog_SSC
105125
machining-direction-sap
left
tool-application
static
Total length (l5)
0.984 ˝
25 mm
Width of groove (mm) (w)
0.098 ˝
2.5 mm
Neck length (l2)
0.394 ˝
10 mm
Full radius (r)
0.049 ˝
1.25 mm
Smallest axial bore diameter (Da min)
0.315 ˝
8 mm
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax a)
0.197 ˝
5 mm
Adjustment dimension cutting center (f)
0.016 ˝
0.4 mm
| Downloads | |
|---|---|
| L105_8V25_1_9_EG35-DXF.DXF | Download |
| L105_8V25_1_9_EG35-STP.STP | Download |
| L105_8V25_1_9_EG35-ISO.XML | Download |
| L105_8V25_1_9_EG35-DIN.XML | Download |
| Download all files | |
