L105.8V16.1.8 EG35
Recommended:
Material number L1058V1618EG35

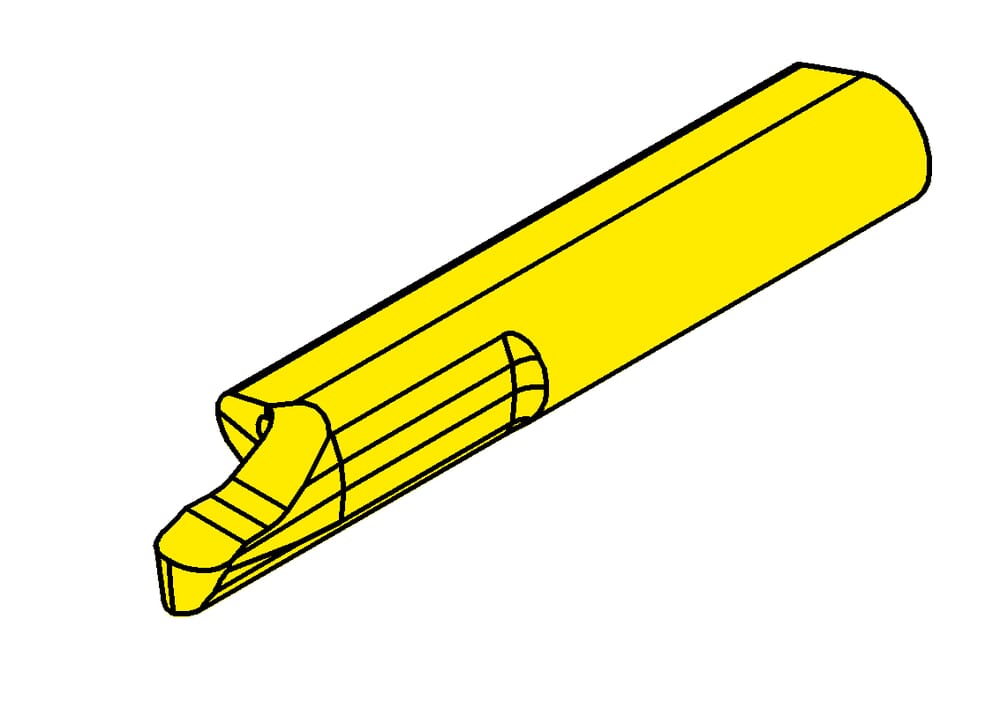

HORN Inserts L105.8V16.1.8 EG35 for Turning
Full radius (r)
0.031 ˝
0.8 mm
Total length (l5)
0.984 ˝
25 mm
Width of groove (mm) (w)
0.063 ˝
1.6 mm
us-cutting
Yes
machining-direction-sap
left
Katalog_SSC
105125
tool-application
static
Smallest axial bore diameter (Da min)
0.315 ˝
8 mm
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax a)
0.118 ˝
3 mm
Adjustment dimension cutting center (f)
0.079 ˝
2 mm
Neck length (l2)
0.394 ˝
10 mm
| Downloads | |
|---|---|
| L105_8V16_1_8_EG35-DXF.DXF | Download |
| L105_8V16_1_8_EG35-STP.STP | Download |
| L105_8V16_1_8_EG35-ISO.XML | Download |
| L105_8V16_1_8_EG35-DIN.XML | Download |
| Download all files | |
