L105.8V10.2.8 EG35
Recommended:
Material number L1058V1028EG35

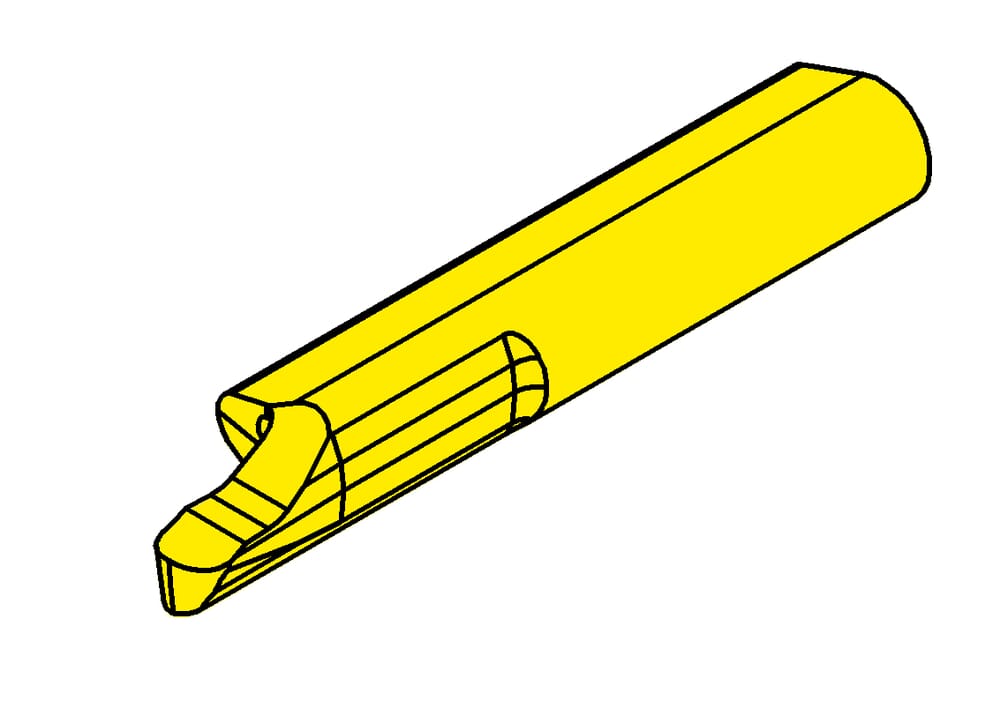

HORN Inserts L105.8V10.2.8 EG35 for Turning
Width of groove (w)
0.039 ˝
1 mm
us-cutting
Yes
tool-application
static
machining-direction-sap
left
Total length (l5)
1.378 ˝
35 mm
Neck length (l2)
0.591 ˝
15 mm
Katalog_SSC
105125
Full radius (r)
0.02 ˝
0.5 mm
Smallest axial bore diameter (Da min)
0.315 ˝
8 mm
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax a)
0.079 ˝
2 mm
Adjustment dimension cutting center (f)
0.079 ˝
2 mm
| Downloads | |
|---|---|
| L105_8V10_2_8_EG35-DXF.DXF | Download |
| L105_8V10_2_8_EG35-STP.STP | Download |
| L105_8V10_2_8_EG35-ISO.XML | Download |
| L105_8V10_2_8_EG35-DIN.XML | Download |
| Download all files | |
