L105.5528.2.6 TN35
Recommended:
Also suitable for:
Material number L105552826TN35

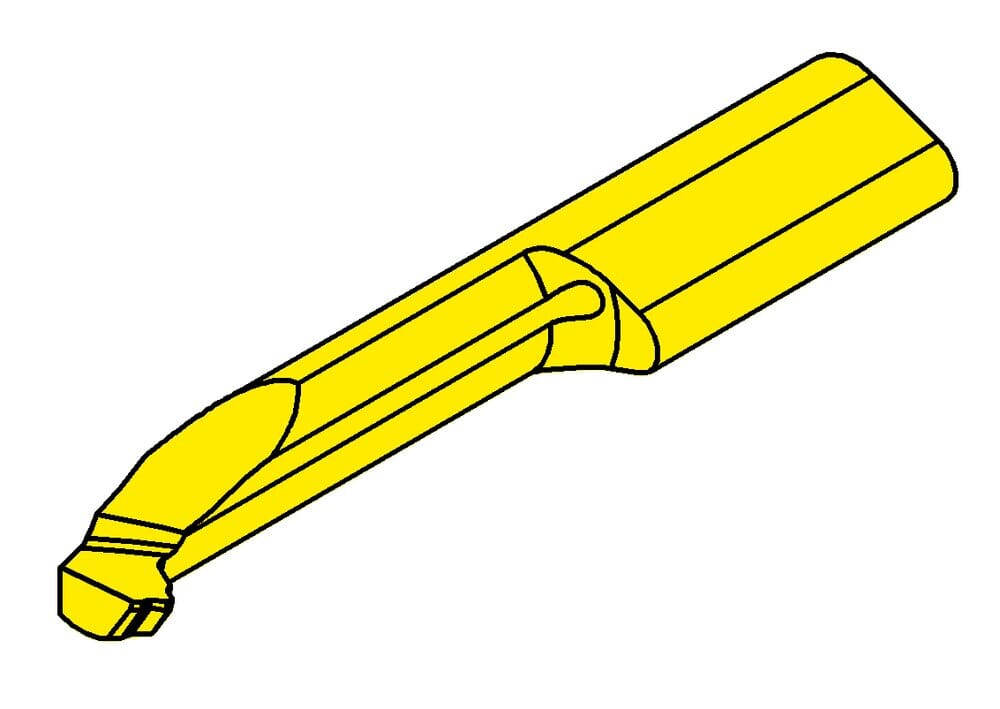

HORN Inserts L105.5528.2.6 TN35 for Gewinden
Smallest bore diameter (Dmin)
0.236 ˝
6 mm
Setting length (E)
0.031 ˝
0.8 mm
Cutting insert width (a)
0.224 ˝
5.7 mm
Setting range radial (f)
0.13 ˝
3.3 mm
Neck diameter (d)
0.146 ˝
3.7 mm
us-cutting
Yes
machining-direction-sap
left
Katalog_SSC
105125
tool-application
static
Width of blank (b)
0.276 ˝
7 mm
Cutting insert total length (l5)
1.181 ˝
30 mm
Neck length (l2)
0.591 ˝
15 mm
| Downloads | |
|---|---|
| L105_5528_2_6_20171121_181732737.STP | Download |
| L105_5528_2_6_TN35-DXF.DXF | Download |
| L105_5528_2_6_TN35-ISO.XML | Download |
| L105_5528_2_6_TN35-DIN.XML | Download |
| Download all files | |
