L105.1840.4.7.2 TI25
Recommended:
Also suitable for:
Material number L1051840472TI25

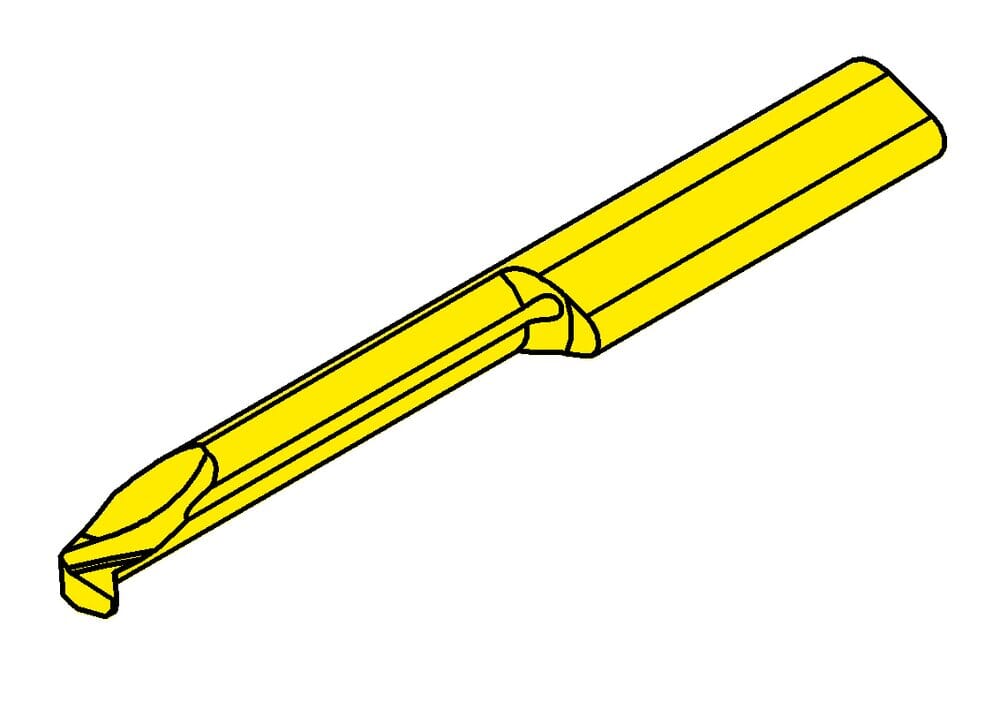

HORN Inserts L105.1840.4.7.2 TI25 for Turning
Note: Items designated with the 105225 HWS code have extended insert shanks. Inserts and holders with this code must be matched to a corresponding 105225 insert/holder.
us-cutting
Yes
Katalog_SSC
105225
machining-direction-sap
left
Neck diameter (d)
0.213 ˝
5.4 mm
Setting range radial (f)
0.157 ˝
4 mm
Total length (l5)
1.969 ˝
50 mm
Smallest bore diameter (Dmin)
0.268 ˝
6.8 mm
Head size (a)
0.252 ˝
6.4 mm
Neck length (l2)
0.984 ˝
25 mm
Top radius (r)
0.004 ˝
0.1 mm
Maximum depth of groove (tmax)
0.012 ˝
0.3 mm
Width of blank (b)
0.276 ˝
7 mm
tool-application
static
| Downloads | |
|---|---|
| L105_1840_4_7_2_TI25-DXF.DXF | Download |
| L105_1840_4_7_2_TI25-STP.STP | Download |
| L105_1840_4_7_2_TI25-ISO.XML | Download |
| L105_1840_4_7_2_TI25-DIN.XML | Download |
| Download all files | |
