L105.1833.4.6.2 TI25
Recommended:
Also suitable for:
Material number L1051833462TI25

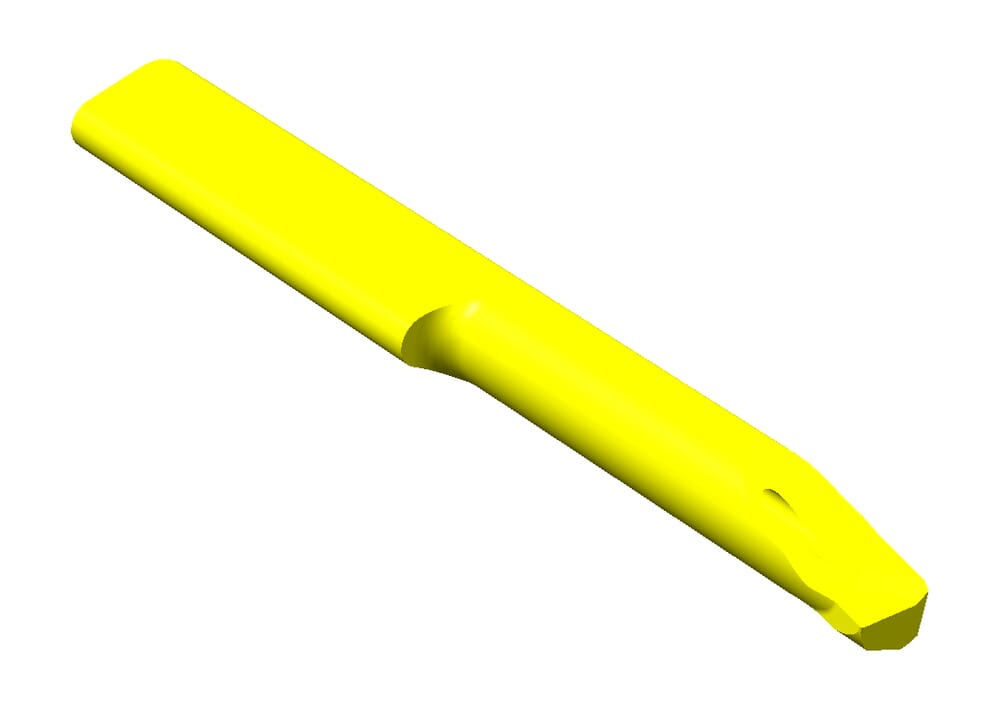

HORN Inserts L105.1833.4.6.2 TI25 for Turning
Smallest bore diameter (Dmin)
0.236 ˝
6 mm
tool-application
static
machining-direction-sap
left
Total length (l5)
1.969 ˝
50 mm
Setting range radial (f)
0.13 ˝
3.3 mm
Neck diameter (d)
0.193 ˝
4.9 mm
Neck length (l2)
0.984 ˝
25 mm
Katalog_SSC
105225
Top radius (r)
0.004 ˝
0.1 mm
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax)
0.012 ˝
0.3 mm
Head size (a)
0.224 ˝
5.7 mm
| Downloads | |
|---|---|
| L1051833462_20210626_014843241.DXF | Download |
| L105183346_20230112_215047016.STP | Download |
| Download all files | |
