L105.1813.005.3.3 EG35
Recommended:
Material number L105181300533EG35

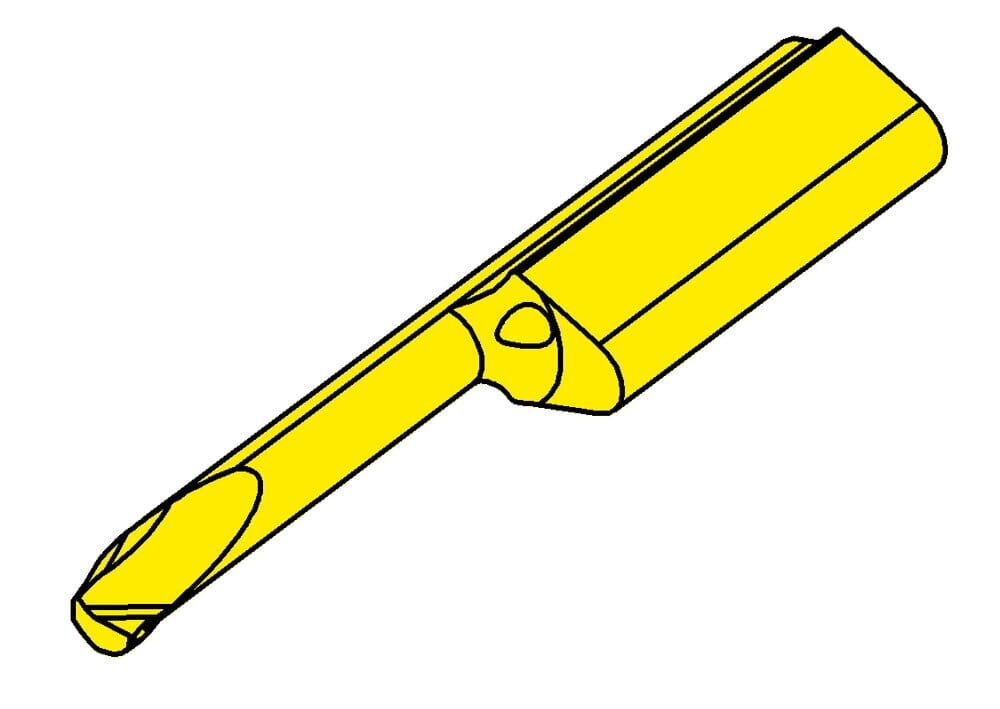

HORN Inserts L105.1813.005.3.3 EG35 for Turning
Smallest bore diameter (Dmin)
0.118 ˝
3 mm
us-cutting
Yes
tool-application
static
machining-direction-sap
left
Total length (l5)
1.378 ˝
35 mm
Setting range radial (f)
0.051 ˝
1.3 mm
Neck diameter (d)
0.091 ˝
2.3 mm
Neck length (l2)
0.787 ˝
20 mm
Katalog_SSC
105123
Top radius (r)
0.002 ˝
0.05 mm
Width of blank (b)
0.232 ˝
5.9 mm
Maximum depth of groove (tmax)
0.006 ˝
0.15 mm
Head size (a)
0.102 ˝
2.6 mm
| Downloads | |
|---|---|
| L105_1813_005_3_3_EG35-DXF.DXF | Download |
| L105_1813_005_3_3_EG35-STP.STP | Download |
| L105_1813_005_3_3_EG35-ISO.XML | Download |
| L105_1813_005_3_3_EG35-DIN.XML | Download |
| Download all files | |
