L105.0830.1.8 IG35
Recommended:
Also suitable for:
Material number L105083018IG35

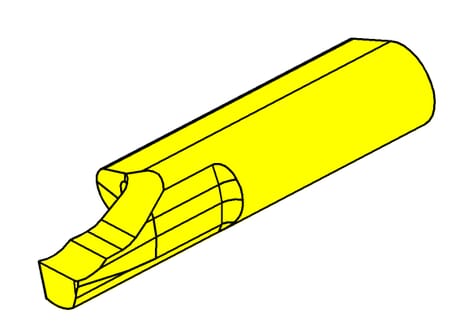

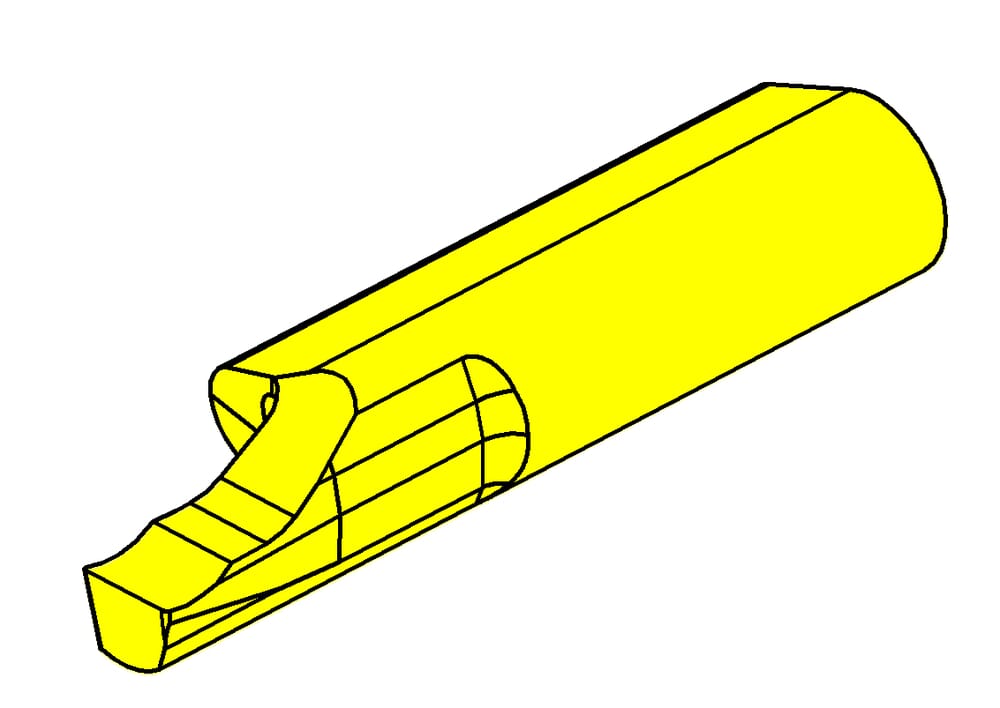

HORN L105.0830.1.8 IG35 for Turning
tool-application
static
us-cutting
Yes
Total length (l5)
0.984 ˝
25 mm
Width of groove (mm) (w)
0.118 ˝
3 mm
Corner radius (r)
0.006 ˝
0.15 mm
Katalog_SSC
105125
Smallest axial bore diameter (Da min)
0.315 ˝
8 mm
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax a)
0.236 ˝
6 mm
Adjustment dimension cutting center (f)
0.079 ˝
2 mm
Neck length (l2)
0.394 ˝
10 mm
| Downloads | |
|---|---|
| L105083018.DXF | Download |
| L105083018_20230112_213240037.STP | Download |
| Download all files | |
