L105.0102.2.3 TN35
Material number L105010223TN35

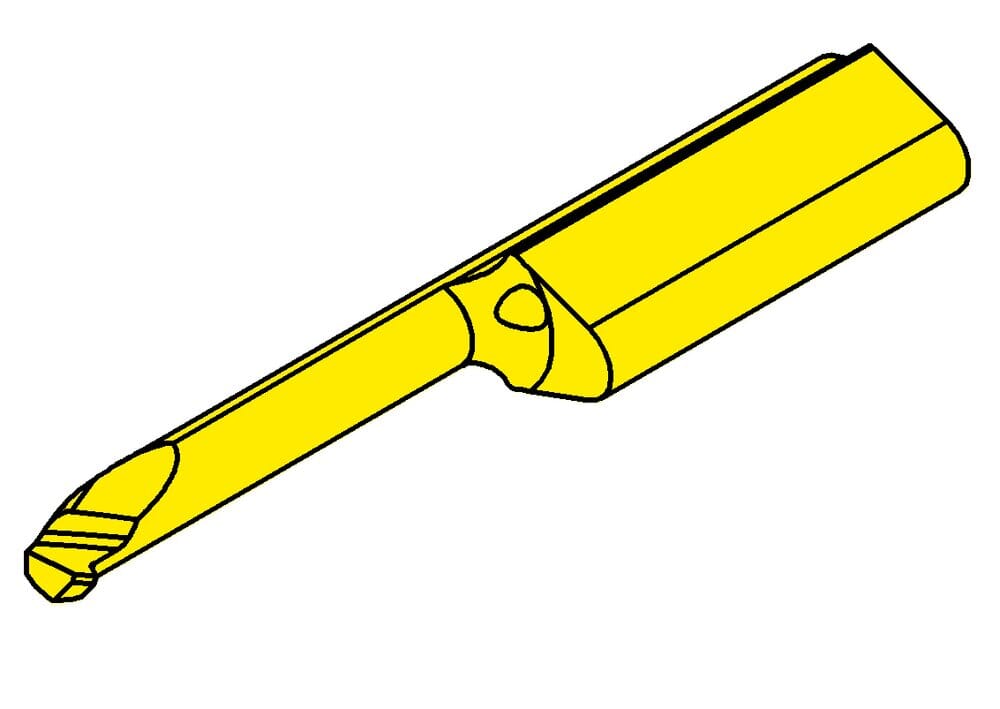

HORN inserts L105.0102.2.3 TN35 for Gewinden
Smallest bore diameter (Dmin)
0.118 ˝
3 mm
tool-application
static
machining-direction-sap
left
Pitch (P)
0.01 ˝
0.25 mm
Setting length (E)
0.012 ˝
0.3 mm
Cutting insert width (a)
0.106 ˝
2.7 mm
Setting range radial (f)
0.055 ˝
1.4 mm
Neck diameter (d)
0.087 ˝
2.2 mm
Neck length (l2)
0.591 ˝
15 mm
Katalog_SSC
105123
Width of blank (b)
0.232 ˝
5.9 mm
Cutting insert total length (l5)
1.181 ˝
30 mm
| Downloads | |
|---|---|
| L105_2428_2_6_20251016_144303267.STP | Download |
| Download all files | |
