L105.0100.3.7 TN35
Recommended:
Also suitable for:
Material number L105010037TN35

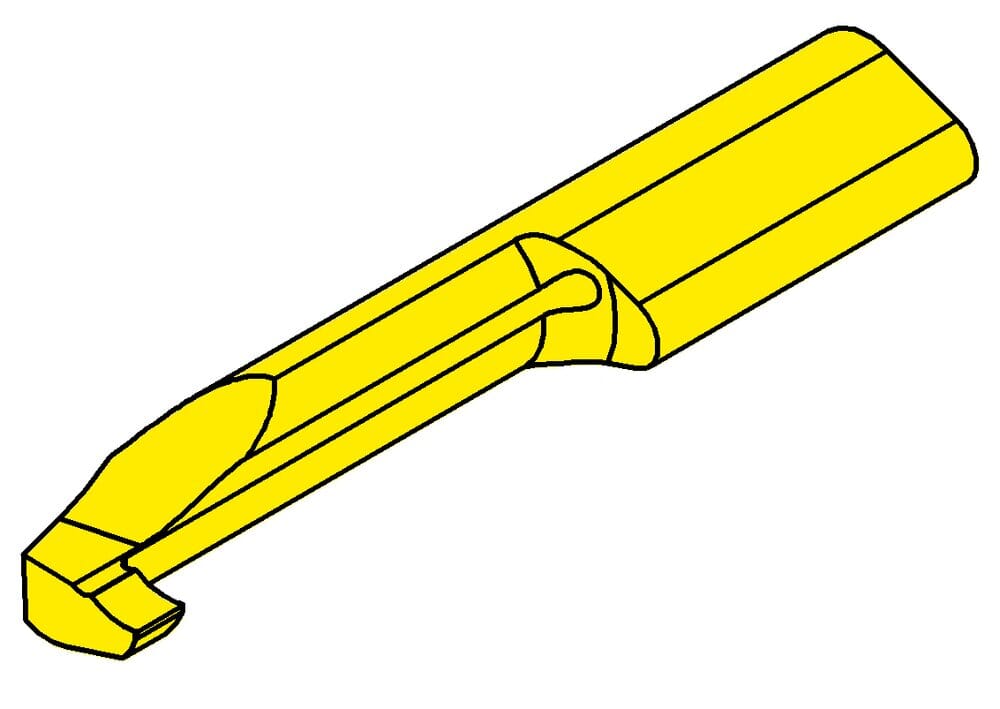

HORN Inserts L105.0100.3.7 TN35 for Turning
tool-application
static
Setting range radial (f)
0.157 ˝
4 mm
Total length (l5)
1.378 ˝
35 mm
Smallest bore diameter (Dmin)
0.268 ˝
6.8 mm
machining-direction-sap
left
Neck diameter (d)
0.146 ˝
3.7 mm
us-cutting
Yes
Neck length (l2)
0.787 ˝
20 mm
Head size (a)
0.252 ˝
6.4 mm
Maximum depth of groove (tmax)
0.098 ˝
2.5 mm
Width of blank (b)
0.276 ˝
7 mm
Katalog_SSC
105125
Width of groove (w)
0.039 ˝
1 mm
| Downloads | |
|---|---|
| L105_0100_3_7_TN35-DXF.DXF | Download |
| L105_0100_3_7_TN35-STP.STP | Download |
| L105_0100_3_7_TN35-ISO.XML | Download |
| L105_0100_3_7_TN35-DIN.XML | Download |
| Download all files | |
