L105.0100.1.7 TN35
Recommended:
Also suitable for:
Material number L105010017TN35

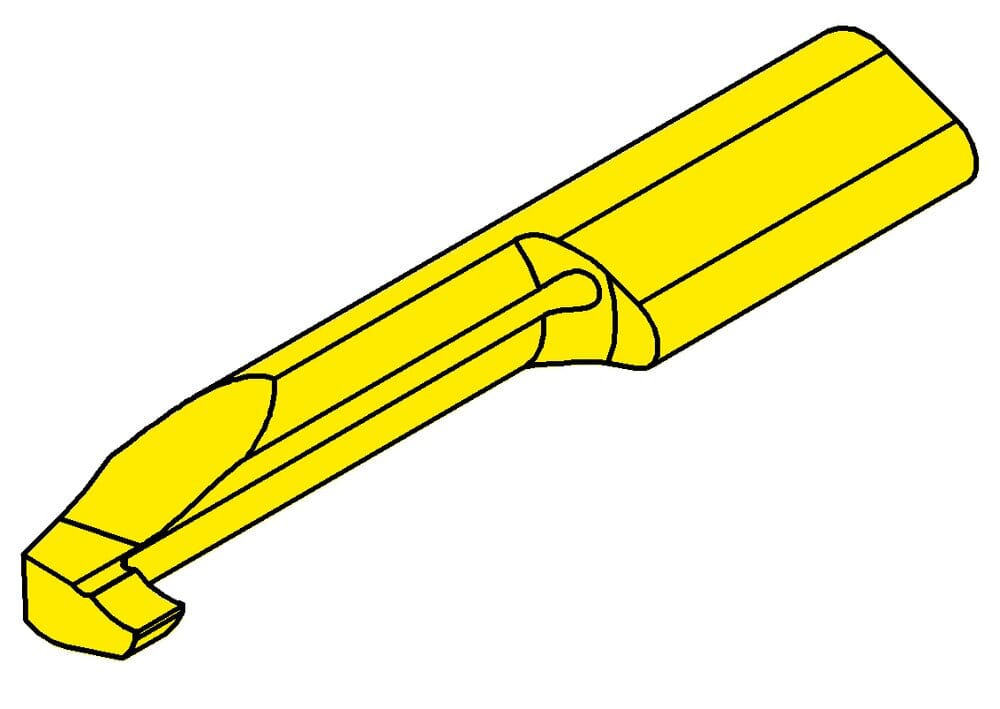

HORN Inserts L105.0100.1.7 TN35 for Turning
Width of groove (mm) (w)
0.039 ˝
1 mm
tool-application
static
machining-direction-sap
left
Smallest bore diameter (Dmin)
0.268 ˝
6.8 mm
Total length (l5)
0.984 ˝
25 mm
Setting range radial (f)
0.157 ˝
4 mm
Neck diameter (d)
0.146 ˝
3.7 mm
Neck length (l2)
0.394 ˝
10 mm
Katalog_SSC
105125
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax)
0.098 ˝
2.5 mm
Head size (a)
0.252 ˝
6.4 mm
| Downloads | |
|---|---|
| L105_0100_1_7_TN35-DXF.DXF | Download |
| L105_0100_1_7_TN35-STP.STP | Download |
| L105_0100_1_7_TN35-ISO.XML | Download |
| L105_0100_1_7_TN35-DIN.XML | Download |
| Download all files | |
