L105.0060.0.1 TH35
Recommended:
Also suitable for:
Material number L105006001TH35

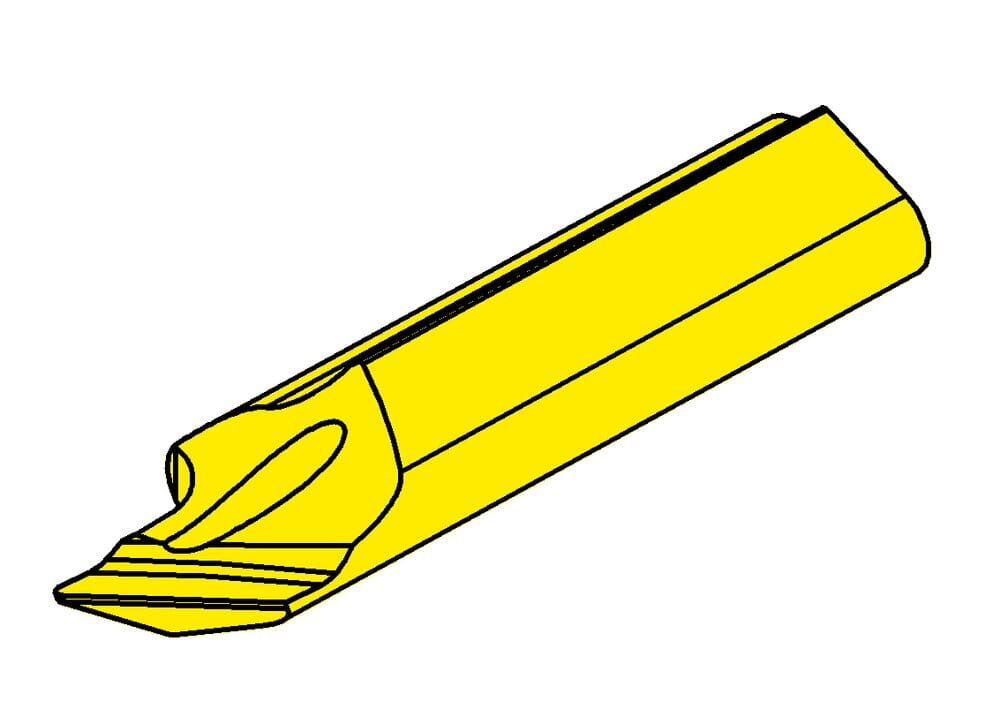

HORN Insert L105.0060.0.1 TH35 for Turning
Total length (l5)
0.787 ˝
20 mm
us-cutting
Yes
machining-direction-sap
left
tool-application
static
Smallest bore diameter (Dmin)
0.039 ˝
1 mm
Setting range radial (f)
0.02 ˝
0.5 mm
Katalog_SSC
105123
Top radius (r)
0.008 ˝
0.2 mm
Width of blank (b)
0.232 ˝
5.9 mm
Maximum depth of groove (tmax a)
0.157 ˝
4 mm
| Downloads | |
|---|---|
| L105_0060_0_1_TH35-DIN.XML | Download |
| L105_0060_0_1_TH35-DXF.DXF | Download |
| L105_0060_0_1_TH35-STP.STP | Download |
| L105_0060_0_1_TH35-ISO.XML | Download |
| Download all files | |
