L105.0050.0.2 EG35
Recommended:
Material number L105005002EG35

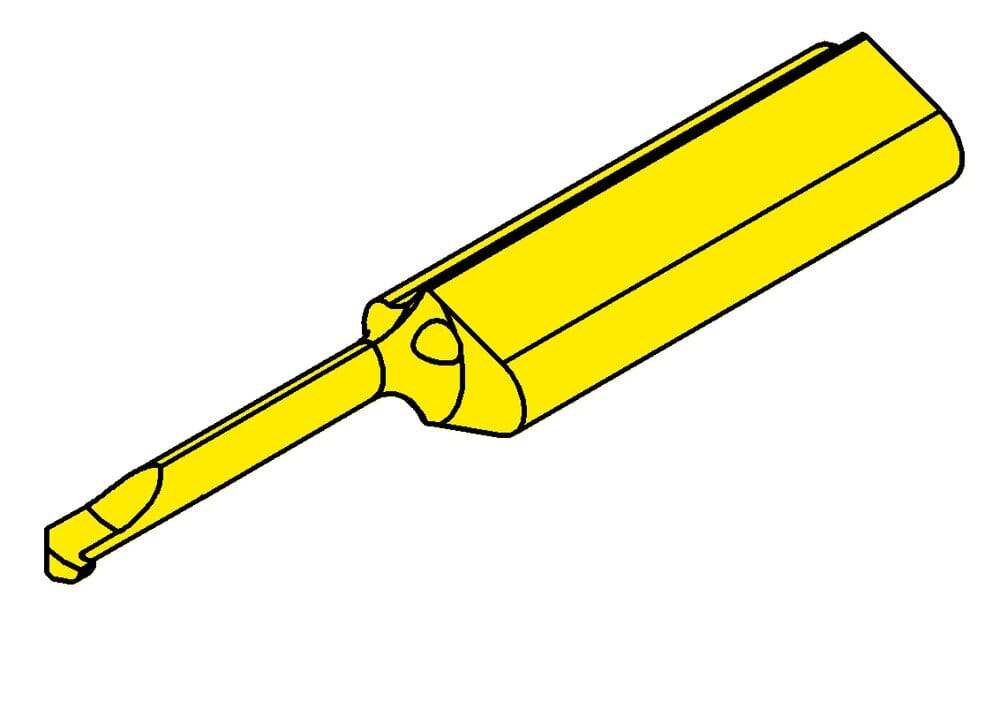

HORN Insert L105.0050.0.2 EG35 for Turning
Smallest bore diameter (Dmin)
0.079 ˝
2 mm
tool-application
static
machining-direction-sap
left
Total length (l5)
0.984 ˝
25 mm
Setting range radial (f)
0.055 ˝
1.4 mm
Neck diameter (d)
0.047 ˝
1.2 mm
Width of groove (mm) (w)
0.02 ˝
0.5 mm
Neck length (l2)
0.236 ˝
6 mm
Katalog_SSC
105123
Width of blank (b)
0.232 ˝
5.9 mm
Maximum depth of groove (tmax)
0.016 ˝
0.4 mm
Head size (a)
0.071 ˝
1.8 mm
| Downloads | |
|---|---|
| L105005002_20230112_212210792.STP | Download |
| L105005002.DXF | Download |
| Download all files | |
