L105.0007.3.5 TN35
Recommended:
Also suitable for:
Material number L105000735TN35

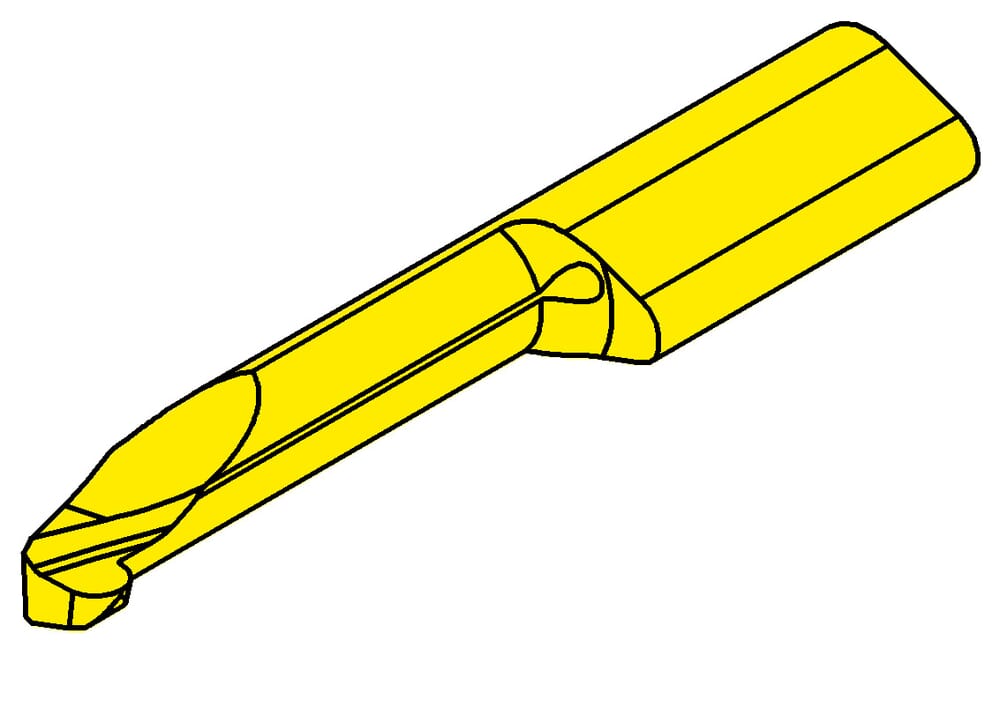

HORN Inserts L105.0007.3.5 TN35 for Turning
Width of groove (mm) (w)
0.059 ˝
1.5 mm
Neck diameter (d)
0.138 ˝
3.5 mm
Setting range radial (f)
0.091 ˝
2.3 mm
Total length (l5)
1.378 ˝
35 mm
Smallest bore diameter (Dmin)
0.197 ˝
5 mm
machining-direction-sap
left
tool-application
static
Full radius (r)
0.03 ˝
0.75 mm
Neck length (l2)
0.787 ˝
20 mm
Head size (a)
0.185 ˝
4.7 mm
Maximum depth of groove (tmax)
0.039 ˝
1 mm
Width of blank (b)
0.276 ˝
7 mm
Katalog_SSC
105125
| Downloads | |
|---|---|
| L105_0007_3_5_TN35-DXF.DXF | Download |
| L105_0007_3_5_TN35-STP.STP | Download |
| L105_0007_3_5_TN35-ISO.XML | Download |
| L105_0007_3_5_TN35-DIN.XML | Download |
| Download all files | |
