L105.0007.1.5 EG35
Recommended:
Material number L105000715EG35

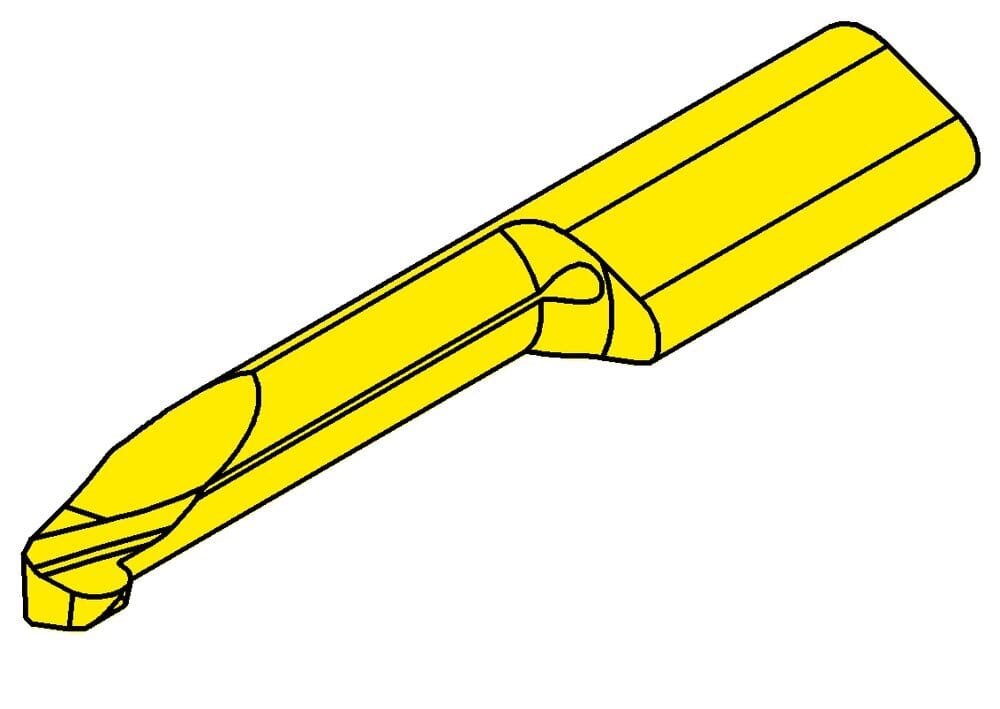

HORN Insert L105.0007.1.5 EG35 for Turning
Smallest bore diameter (Dmin)
0.197 ˝
5 mm
Width of groove (mm) (w)
0.059 ˝
1.5 mm
Neck diameter (d)
0.138 ˝
3.5 mm
Setting range radial (f)
0.091 ˝
2.3 mm
Total length (l5)
0.984 ˝
25 mm
machining-direction-sap
left
tool-application
static
cutting
1
Neck length (l2)
0.394 ˝
10 mm
Katalog_SSC
105125
Full radius (r)
0.03 ˝
0.75 mm
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax)
0.039 ˝
1 mm
Head size (a)
0.185 ˝
4.7 mm
| Downloads | |
|---|---|
| L105_0007_1_5_EG35-DXF.DXF | Download |
| L105_0007_1_5_EG35-STP.STP | Download |
| L105_0007_1_5_EG35-ISO.XML | Download |
| L105_0007_1_5_EG35-DIN.XML | Download |
| Download all files | |
