L105.0005.4.6 TN35
Recommended:
Also suitable for:
Material number L105000546TN35

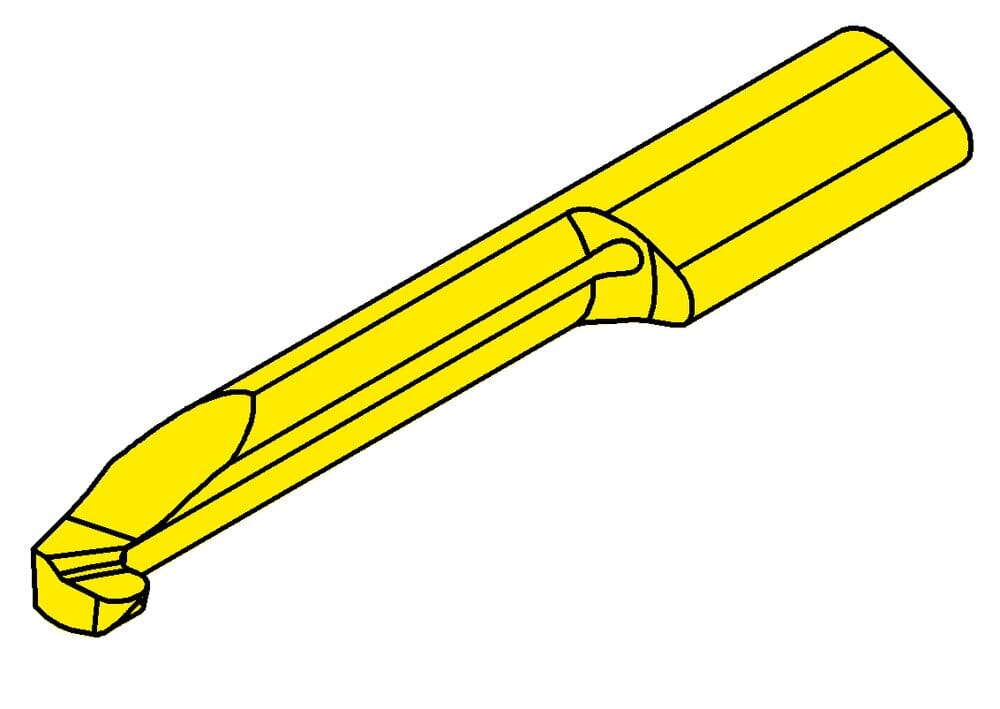

HORN Inserts L105.0005.4.6 TN35 for Turning
machining-direction-sap
left
Neck diameter (d)
0.146 ˝
3.7 mm
Setting range radial (f)
0.13 ˝
3.3 mm
Total length (l5)
1.575 ˝
40 mm
Smallest bore diameter (Dmin)
0.236 ˝
6 mm
Width of groove (mm) (w)
0.039 ˝
1 mm
tool-application
static
cutting
1
us-cutting
Yes
Full radius (r)
0.02 ˝
0.5 mm
Neck length (l2)
0.984 ˝
25 mm
Head size (a)
0.224 ˝
5.7 mm
Maximum depth of groove (tmax)
0.071 ˝
1.8 mm
Width of blank (b)
0.276 ˝
7 mm
Katalog_SSC
105125
| Downloads | |
|---|---|
| L105_0005_4_6_TN35-DXF.DXF | Download |
| L105_0005_4_6_TN35-STP.STP | Download |
| L105_0005_4_6_TN35-ISO.XML | Download |
| L105_0005_4_6_TN35-DIN.XML | Download |
| Download all files | |
