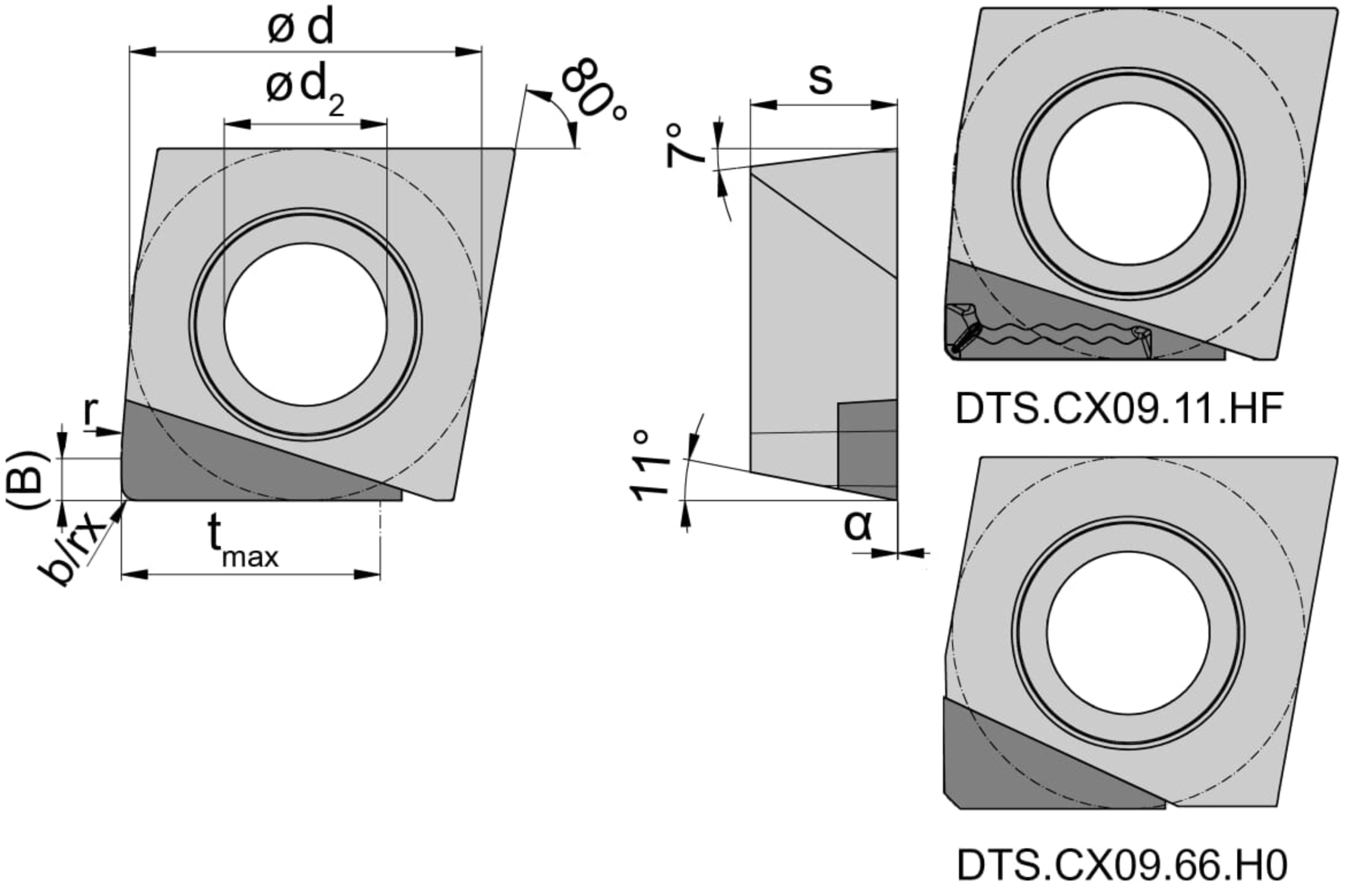

DTS.CX09.11.HF PD75

Material number DTSCX0911HFPD75

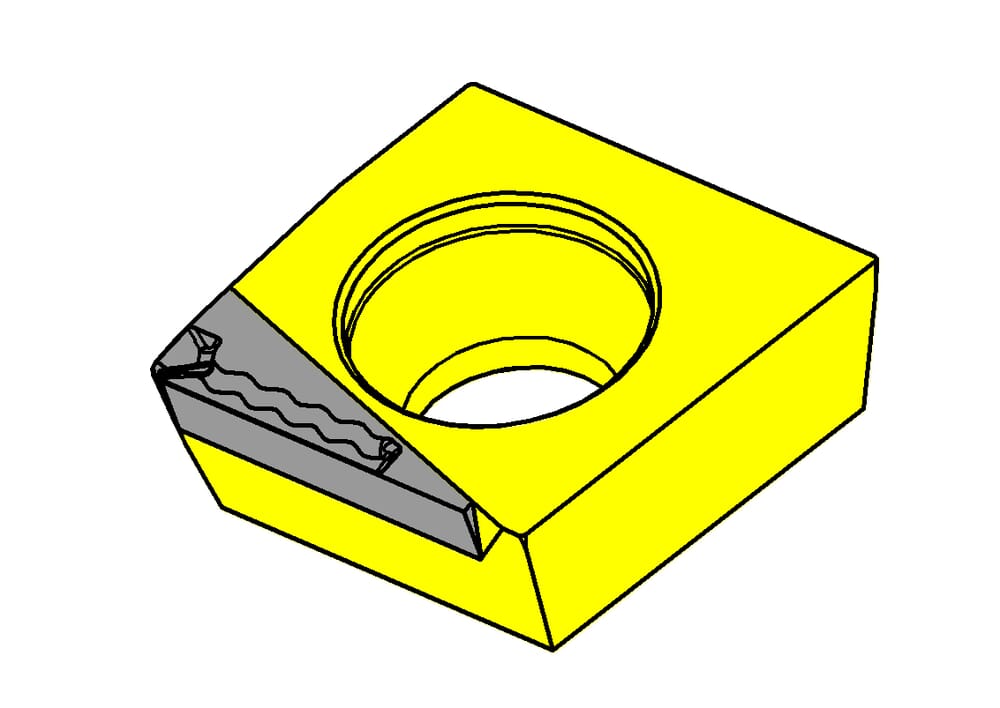

HORN Insert - PCD tipped DTS.CX09.11.HF PD75 for Milling

Spur radius ((B))

0.035 ˝

0.9 mm

tool-application

rotating

Inner circle diameter (d)

0.375 ˝

9.525 mm

Maximum milling depth (tmax)

0.276 ˝

7 mm

Cutting insert height, Cutting insert thickness (s)

0.156 ˝

3.97 mm

Bore diameter (d2)

0.173 ˝

4.4 mm

Corner radius (rx)

0.016 ˝

0.4 mm

Radius, full-radius (r Wiper)

0.492 ˝

12.5 mm

Inserts

CCGT09T301NHSPD70
