DSTH.4.120.200.050 TS3E
Recommended:
Material number DSTH4120200050TS3E

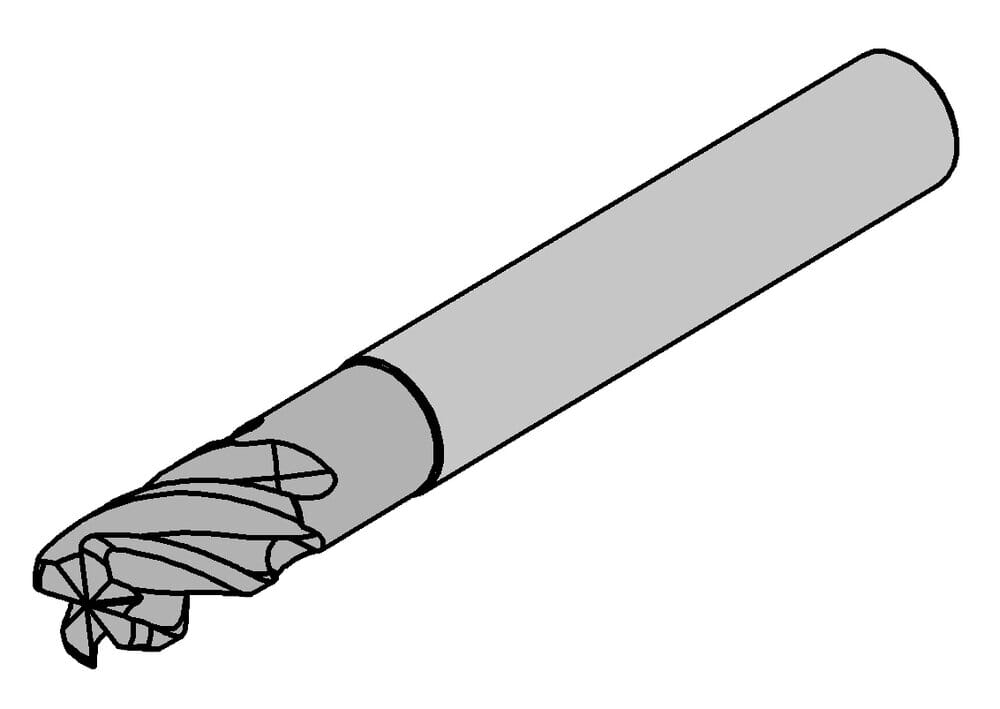

HORN DS-Endmill Z 4 DSTH.4.120.200.050 TS3E for Milling
Effective cutting length (l2)
0.709 ˝
18 mm
us-cutting
Yes
cutting
1
tool-application
rotating
Total length (l1)
4.724 ˝
120 mm
Neck diameter (d3)
0.457 ˝
11.6 mm
Shank diameter (d2)
0.472 ˝
12 mm
Corner radius (r)
0.079 ˝
2 mm
Cutting diameter (d1)
0.472 ˝
12 mm
Neck length (l3)
2.362 ˝
60 mm
| Downloads | |
|---|---|
| DSTH_4_120_200_050_TS3E-ISO.XML | Download |
| DSTH_4_120_200_050_TS3E-DIN.XML | Download |
| Download all files | |
