DSTH.4.060.020.030 TS3E
Recommended:
Material number DSTH4060020030TS3E

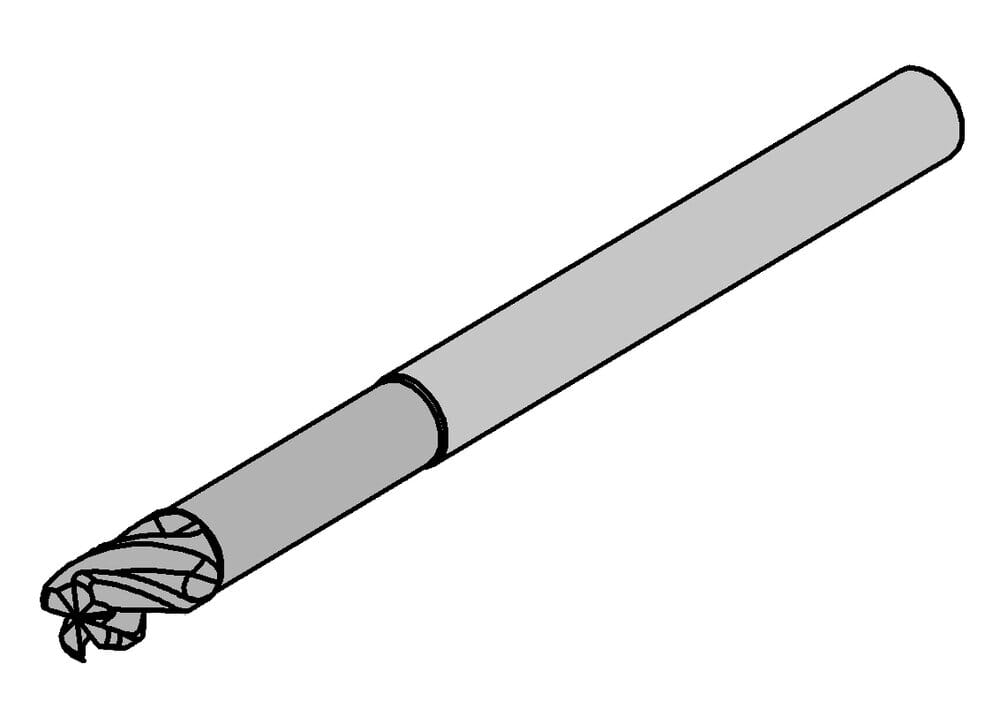

HORN DS endmill DSTH.4.060.020.030 TS3E for Milling
Effective cutting length (l2)
0.354 ˝
9 mm
cutting
1
tool-application
rotating
Total length (l1)
2.52 ˝
64 mm
Neck diameter (d3)
0.224 ˝
5.7 mm
Shank diameter (d2)
0.236 ˝
6 mm
Corner radius (r)
0.008 ˝
0.2 mm
Cutting diameter (d1)
0.236 ˝
6 mm
Neck length (l3)
0.709 ˝
18 mm
| Downloads | |
|---|---|
| DSTH_4_060_020_030_TS3E-ISO.XML | Download |
| DSTH_4_060_020_030_TS3E-DIN.XML | Download |
| Download all files | |
