DSTH.4.050.100.070 TS3E
Recommended:
Material number DSTH4050100070TS3E

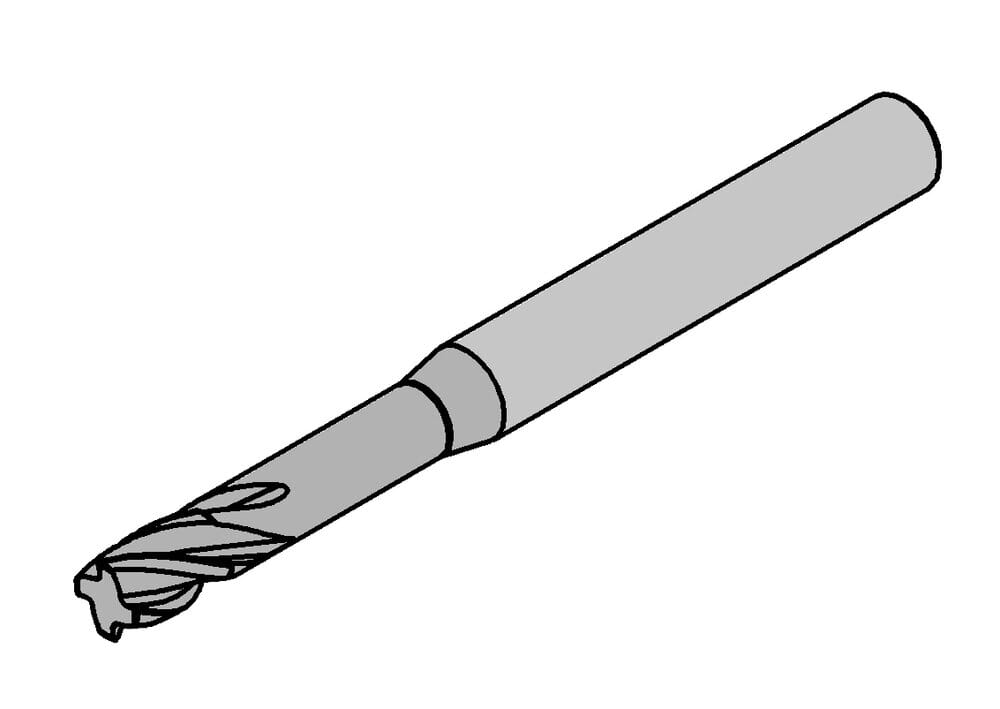

HORN DS endmill DSTH.4.050.100.070 TS3E for Milling
Effective cutting length (l2)
0.295 ˝
7.5 mm
cutting
1
tool-application
rotating
Total length (l1)
3.071 ˝
78 mm
Neck diameter (d3)
0.185 ˝
4.7 mm
Shank diameter (d2)
0.236 ˝
6 mm
Corner radius (r)
0.039 ˝
1 mm
Cutting diameter (d1)
0.197 ˝
5 mm
Neck length (l3)
1.378 ˝
35 mm
| Downloads | |
|---|---|
| DSTH_4_050_100_070_TS3E-ISO.XML | Download |
| DSTH_4_050_100_070_TS3E-DIN.XML | Download |
| Download all files | |
