DSTH.4.050.020.030 TS3E
Recommended:
Material number DSTH4050020030TS3E

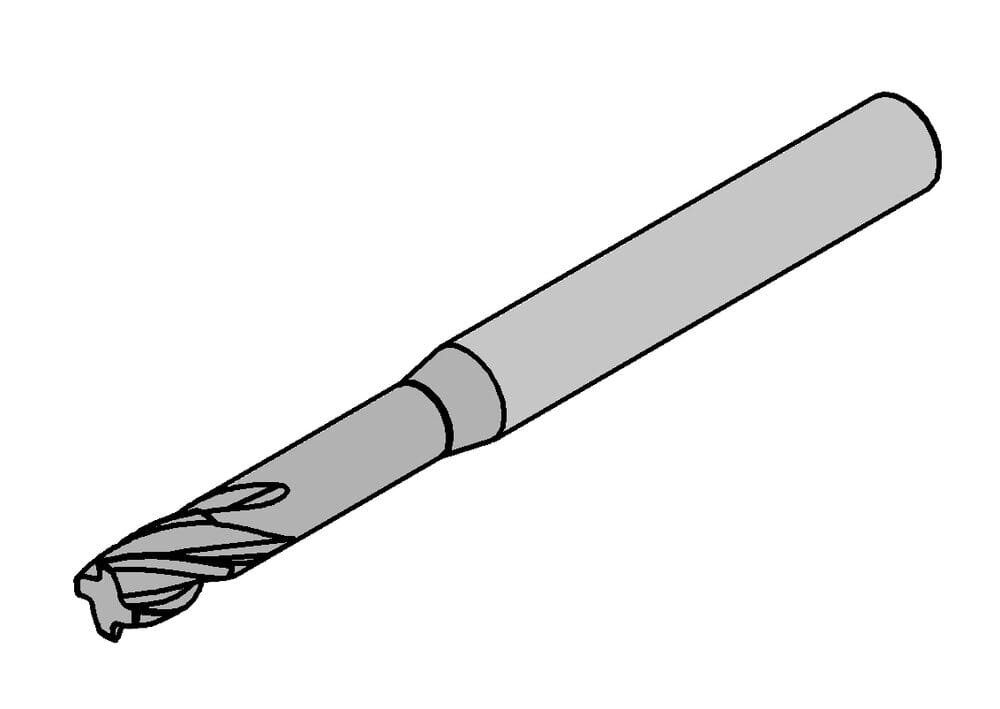

HORN DS-Endmill Z 4 DSTH.4.050.020.030 TS3E for Milling
Effective cutting length (l2)
0.295 ˝
7.5 mm
us-cutting
Yes
tool-application
rotating
Total length (l1)
2.52 ˝
64 mm
Neck diameter (d3)
0.185 ˝
4.7 mm
Shank diameter (d2)
0.236 ˝
6 mm
Corner radius (r)
0.008 ˝
0.2 mm
Cutting diameter (d1)
0.197 ˝
5 mm
Neck length (l3)
0.591 ˝
15 mm
| Downloads | |
|---|---|
| DSTH_4_050_020_030_TS3E-ISO.XML | Download |
| DSTH_4_050_020_030_TS3E-DIN.XML | Download |
| Download all files | |
