DSTH.4.040.100.030 TS3E
Recommended:
Material number DSTH4040100030TS3E

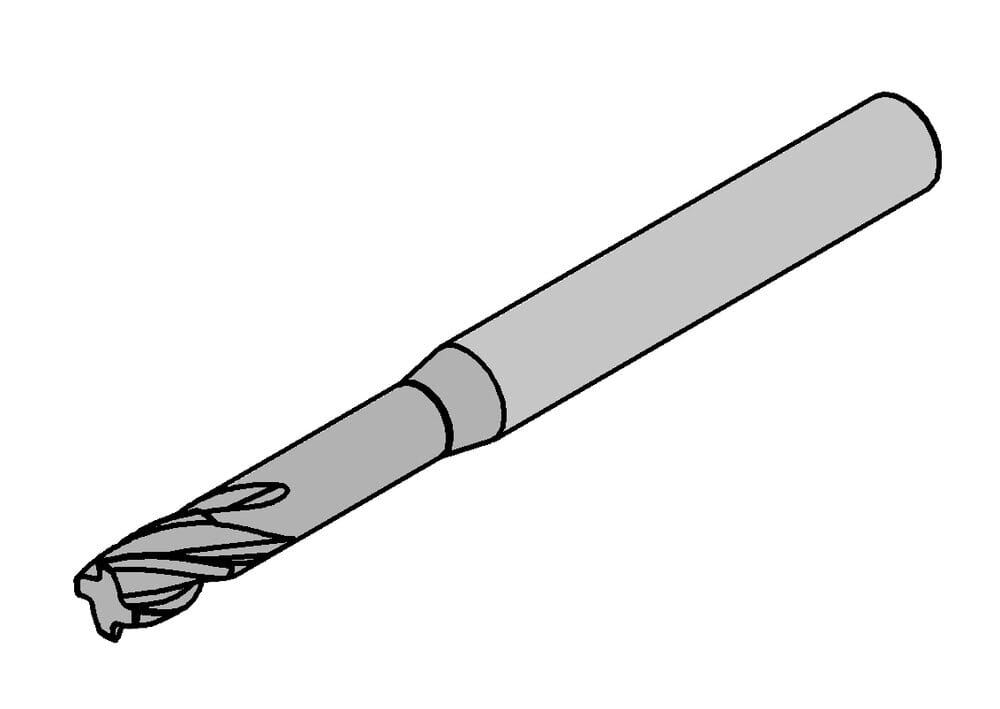

HORN DS endmill DSTH.4.040.100.030 TS3E for Milling
Effective cutting length (l2)
0.236 ˝
6 mm
cutting
1
tool-application
rotating
Total length (l1)
2.52 ˝
64 mm
Neck diameter (d3)
0.15 ˝
3.8 mm
Shank diameter (d2)
0.236 ˝
6 mm
Corner radius (r)
0.039 ˝
1 mm
Cutting diameter (d1)
0.157 ˝
4 mm
Neck length (l3)
0.472 ˝
12 mm
| Downloads | |
|---|---|
| DSTH_4_040_100_030_TS3E-ISO.XML | Download |
| DSTH_4_040_100_030_TS3E-DIN.XML | Download |
| Download all files | |
