DST.2.06.2560.10.06 HD08
Material number DST20625601006HD08

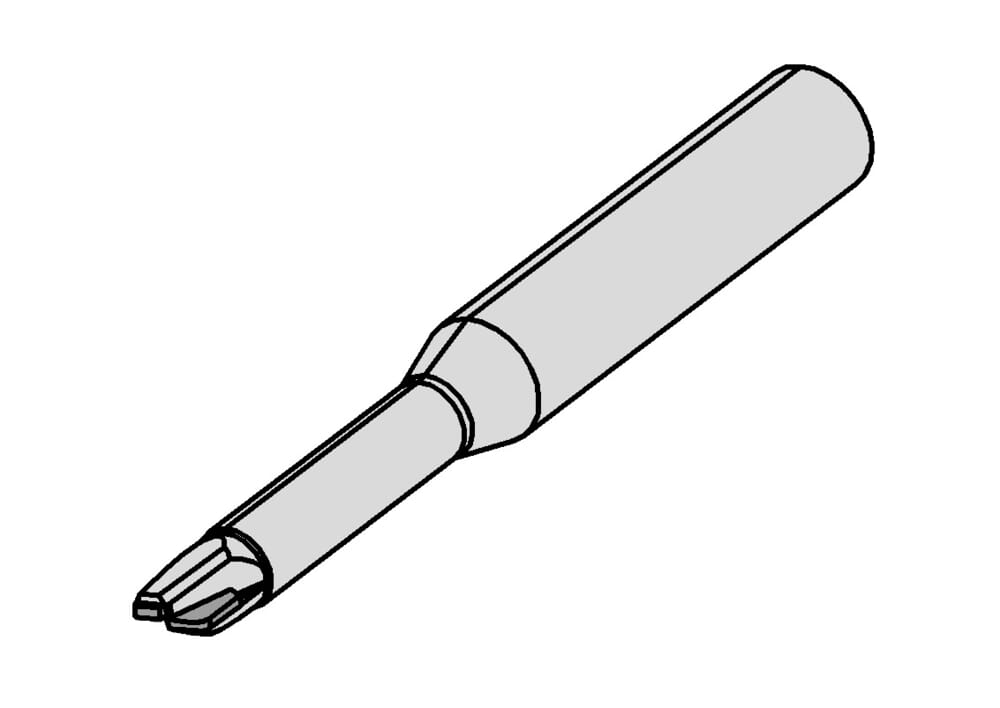

HORN DS Milling cutter DST.2.06.2560.10.06 HD08 for Milling
Effective cutting length (l2)
0.236 ˝
6 mm
tool-application
rotating
Total length (l1)
2.756 ˝
70 mm
Neck diameter (d3)
0.22 ˝
5.6 mm
Shank diameter (d2)
0.236 ˝
6 mm
Corner radius (r)
0.039 ˝
1 mm
Cutting diameter (d1)
0.236 ˝
6 mm
Neck length (l3)
0.984 ˝
25 mm
