DSRV.5.200.200.20 IG3I

Recommended:

Also suitable for:

Material number DSRV520020020IG3I

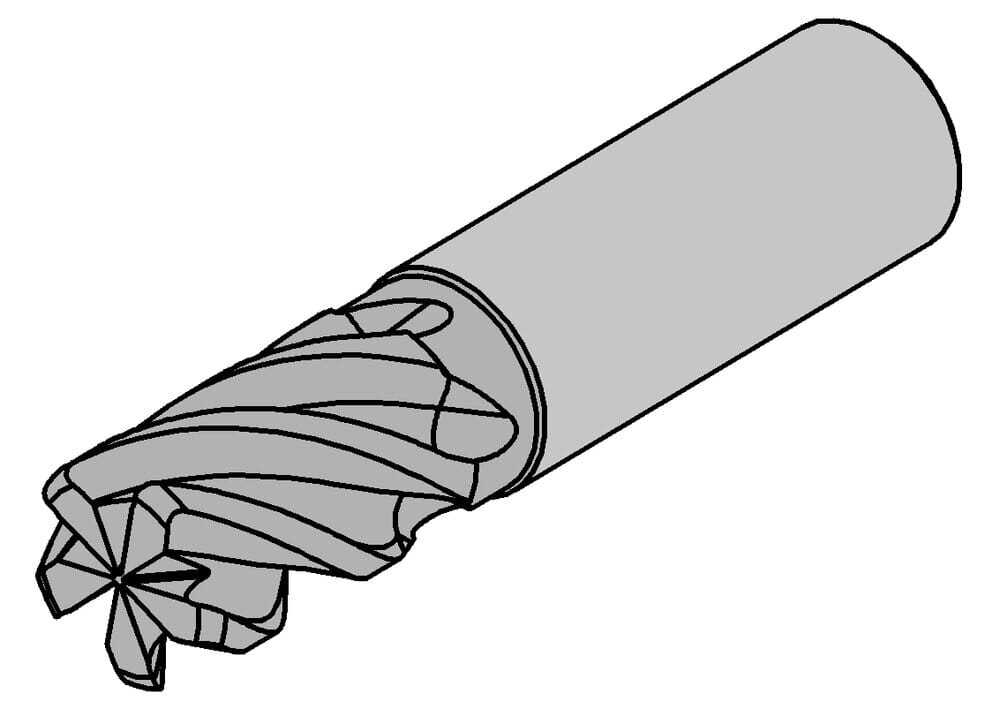

HORN DS-endmill - Ø20.0mm corner radii = 2.0mm length = 2xØ Z = 5 effective DSRV.5.200.200.20 IG3I for Milling

Total length (l1)

3.622 ˝

92 mm

us-cutting

Yes

tool-application

rotating

Effective cutting length (l2)

1.181 ˝

30 mm

Neck diameter (d3)

0.748 ˝

19 mm

Shank diameter (d2)

0.787 ˝

20 mm

Corner radius (r)

0.079 ˝

2 mm

Cutting diameter (d1)

0.787 ˝

20 mm

Neck length (l3)

1.575 ˝

40 mm
