DSRV.5.200.100.30B IG3I

Recommended:

Also suitable for:

Material number DSRV520010030BIG3I

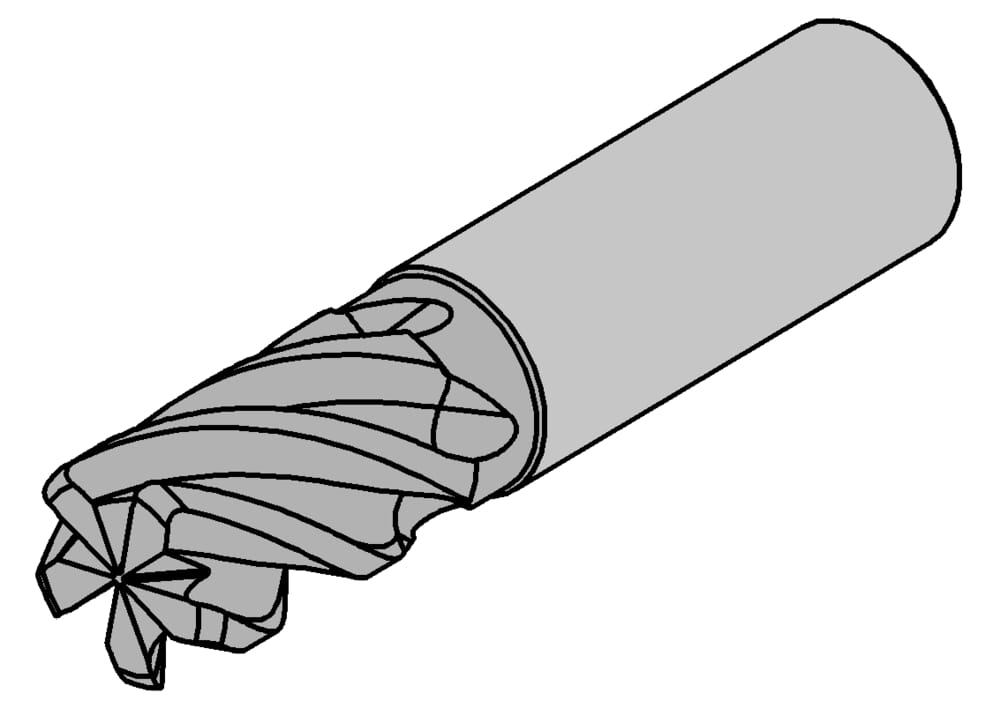

HORN DS-endmill - Ø20.0mm corner radii = 1.0mm length = 3xØ Z = 5 effective DSRV.5.200.100.30B IG3I for Milling

Total length (l1)

4.724 ˝

120 mm

Effective cutting length (l2)

1.654 ˝

42 mm

Neck diameter (d3)

0.748 ˝

19 mm

Corner radius (r)

0.039 ˝

1 mm

us-cutting

Yes

tool-application

rotating

Cutting diameter (d1)

0.787 ˝

20 mm

Neck length (l3)

2.362 ˝

60 mm

Shank diameter (d2)

0.787 ˝

20 mm
