DSRV.5.160.150.30B IG3I

Recommended:

Also suitable for:

Material number DSRV516015030BIG3I

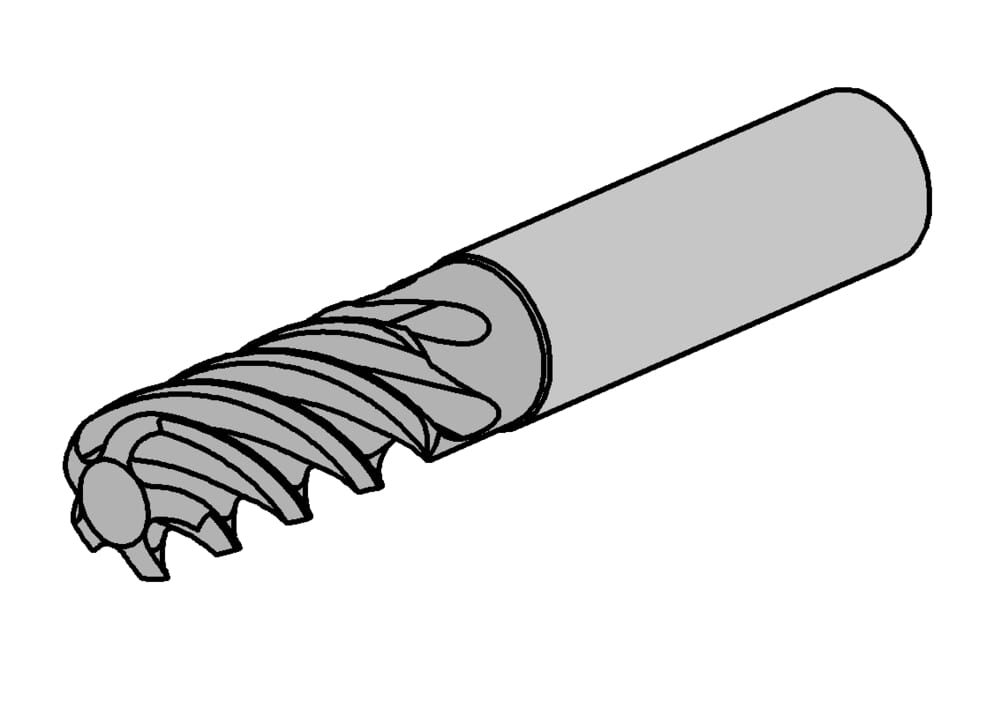

HORN DS-endmill - Ø16.0mm corner radii = 1.5mm length = 3xØ Z = 5 effective DSRV.5.160.150.30B IG3I for Milling

Total length (l1)

3.937 ˝

100 mm

us-cutting

Yes

tool-application

rotating

Effective cutting length (l2)

1.339 ˝

34 mm

Neck diameter (d3)

0.598 ˝

15.2 mm

Shank diameter (d2)

0.63 ˝

16 mm

Corner radius (r)

0.059 ˝

1.5 mm

Cutting diameter (d1)

0.63 ˝

16 mm

Neck length (l3)

1.89 ˝

48 mm
