DSRV.5.160.050.30 IG3I
Recommended:
Also suitable for:
Material number DSRV516005030IG3I

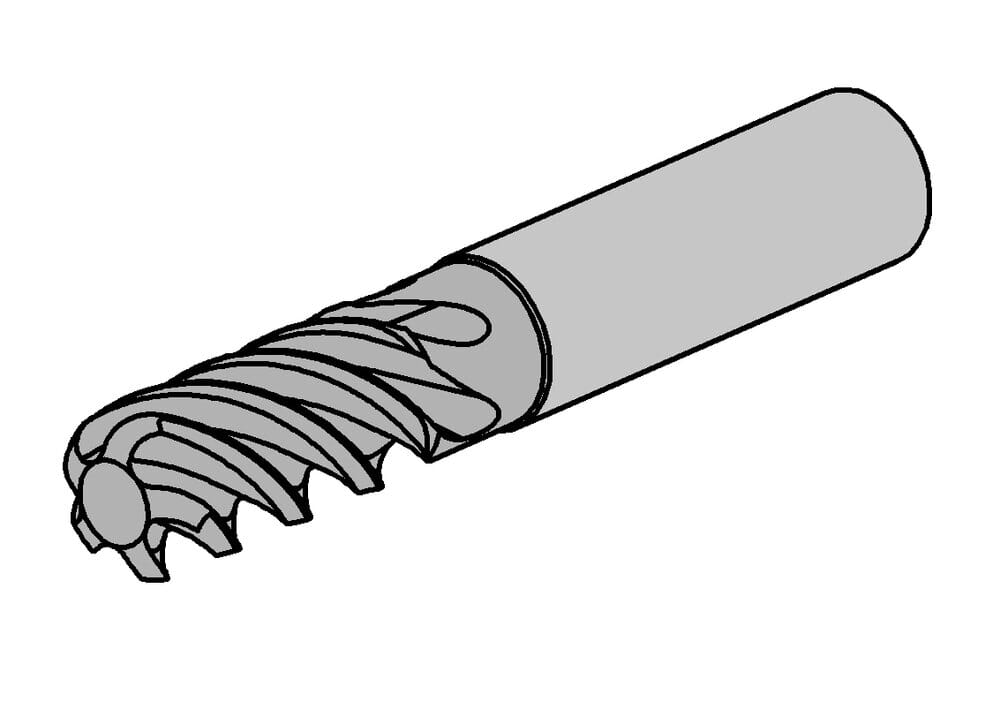

HORN DS-endmill - Ø16.0mm
corner radii = 0.5mm
length = 3xØ
Z = 5 effective DSRV.5.160.050.30 IG3I for Milling
Total length (l1)
3.937 ˝
100 mm
cutting
1
tool-application
rotating
Effective cutting length (l2)
1.339 ˝
34 mm
Neck diameter (d3)
0.598 ˝
15.2 mm
Shank diameter (d2)
0.63 ˝
16 mm
Corner radius (r)
0.02 ˝
0.5 mm
Cutting diameter (d1)
0.63 ˝
16 mm
Neck length (l3)
1.89 ˝
48 mm
| Downloads | |
|---|---|
| DSRV_5_160_050_30_IG3I-ISO.XML | Download |
| DSRV_5_160_050_30_IG3I-DIN.XML | Download |
| Download all files | |
