DSRV.5.160.020.20B IG3I

Material number DSRV516002020BIG3I

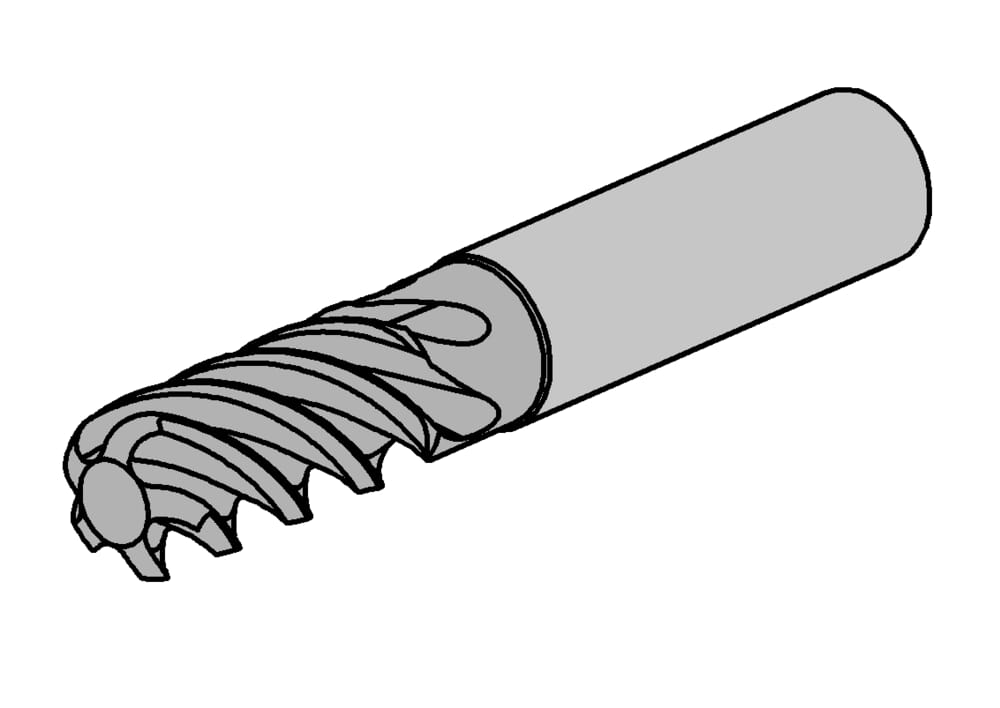

HORN DS-endmill - Ø16.0mm corner radii = 0.2mm length = 2xØ Z = 5 effective DSRV.5.160.020.20B IG3I for Milling

Corner radius (r)

0.008 ˝

0.2 mm

tool-application

rotating

Total length (l1)

3.228 ˝

82 mm

Effective cutting length (l2)

0.945 ˝

24 mm

Neck diameter (d3)

0.598 ˝

15.2 mm

Shank diameter (d2)

0.63 ˝

16 mm

Cutting diameter (d1)

0.63 ˝

16 mm

Neck length (l3)

1.26 ˝

32 mm
