DSRV.5.120.250.20 IG3I

Recommended:

Also suitable for:

Material number DSRV512025020IG3I

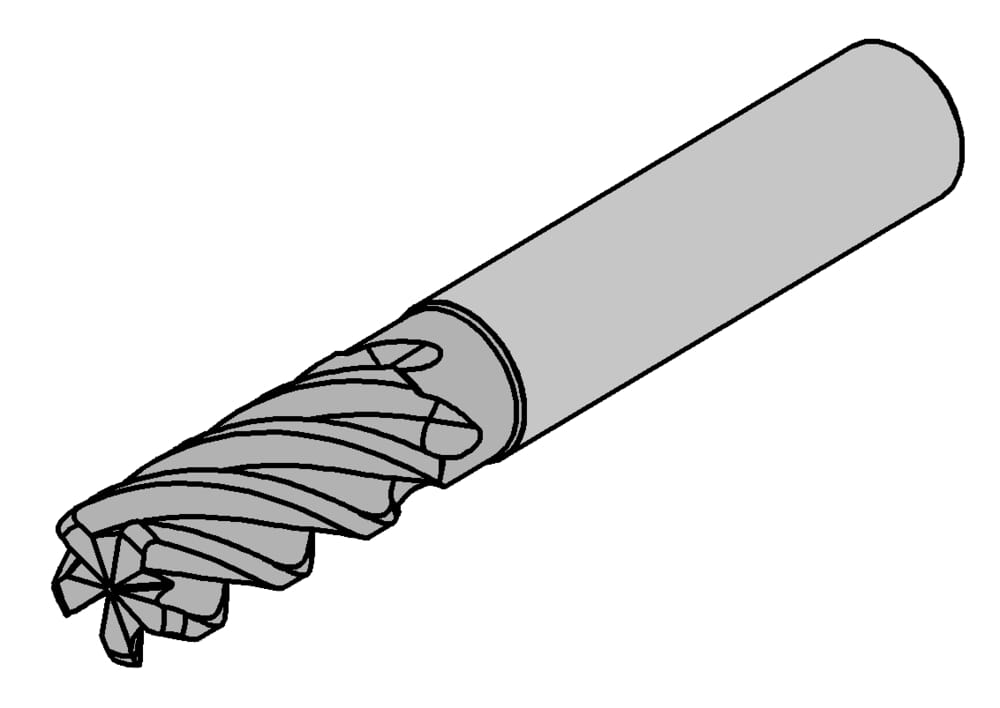

HORN DS-endmill - Ø12.0mm corner radii = 2.5mm length = 2xØ Z = 5 effective DSRV.5.120.250.20 IG3I for Milling

Total length (l1)

2.874 ˝

73 mm

us-cutting

Yes

tool-application

rotating

Effective cutting length (l2)

0.709 ˝

18 mm

Neck diameter (d3)

0.449 ˝

11.4 mm

Shank diameter (d2)

0.472 ˝

12 mm

Corner radius (r)

0.098 ˝

2.5 mm

Cutting diameter (d1)

0.472 ˝

12 mm

Neck length (l3)

0.945 ˝

24 mm
