DSRV.5.120.100.30 IG3I

Recommended:

Also suitable for:

Material number DSRV512010030IG3I

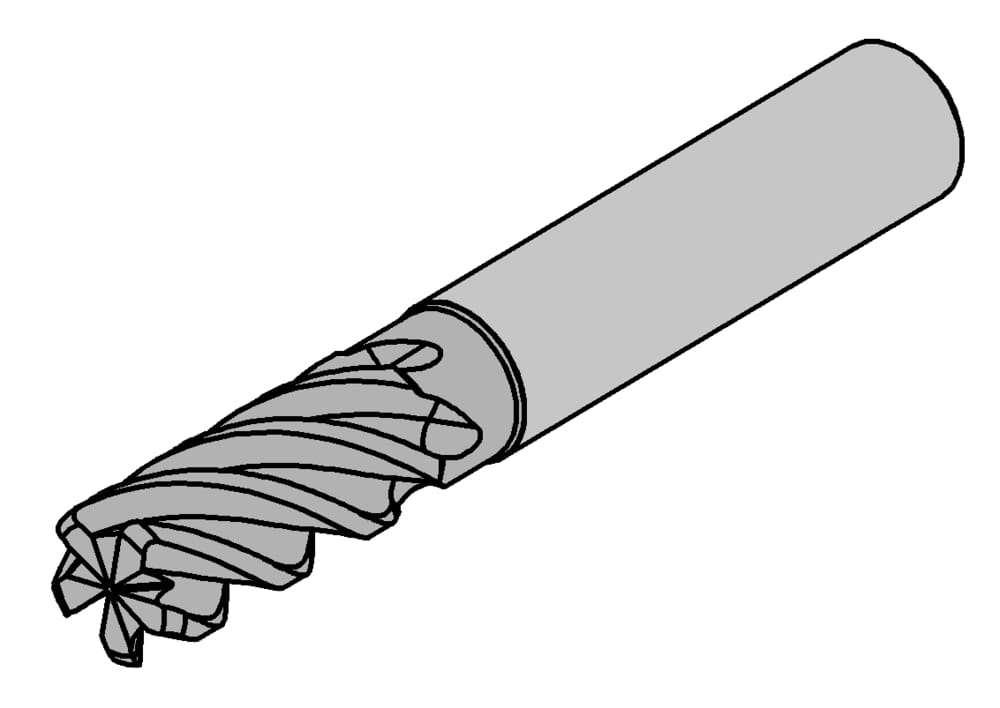

HORN DS-endmill - Ø12.0mm corner radii = 1.0mm length = 3xØ Z = 5 effective DSRV.5.120.100.30 IG3I for Milling

Total length (l1)

3.268 ˝

83 mm

us-cutting

Yes

tool-application

rotating

Effective cutting length (l2)

1.024 ˝

26 mm

Neck diameter (d3)

0.449 ˝

11.4 mm

Shank diameter (d2)

0.472 ˝

12 mm

Corner radius (r)

0.039 ˝

1 mm

Cutting diameter (d1)

0.472 ˝

12 mm

Neck length (l3)

1.417 ˝

36 mm
