DSRV.5.120.050.30 TSTK
Material number DSRV512005030TSTK

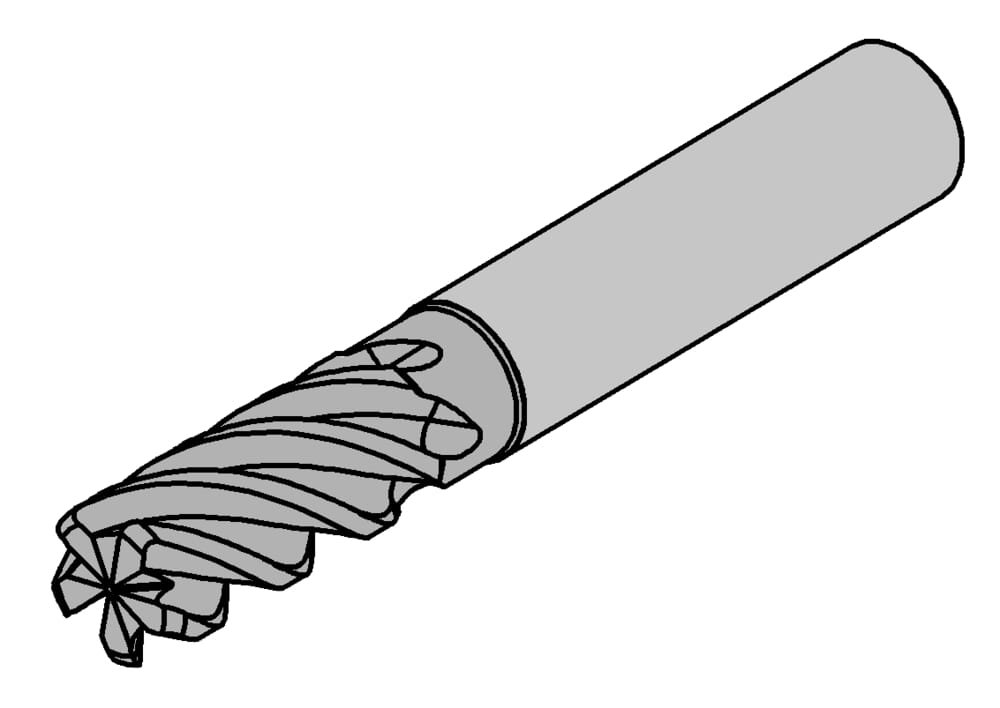

HORN DS-end mill Ø12 R0,5 3xØ Z5 DSRV.5.120.050.30 TSTK for Milling
Effective cutting length (l2)
1.024 ˝
26 mm
us-cutting
Yes
tool-application
rotating
Total length (l1)
3.268 ˝
83 mm
Neck diameter (d3)
0.449 ˝
11.4 mm
Shank diameter (d2)
0.472 ˝
12 mm
Corner radius (r)
0.02 ˝
0.5 mm
Cutting diameter (d1)
0.472 ˝
12 mm
Neck length (l3)
1.417 ˝
36 mm
