DSRV.5.100.250.30 IG3I
Recommended:
Also suitable for:
Material number DSRV510025030IG3I

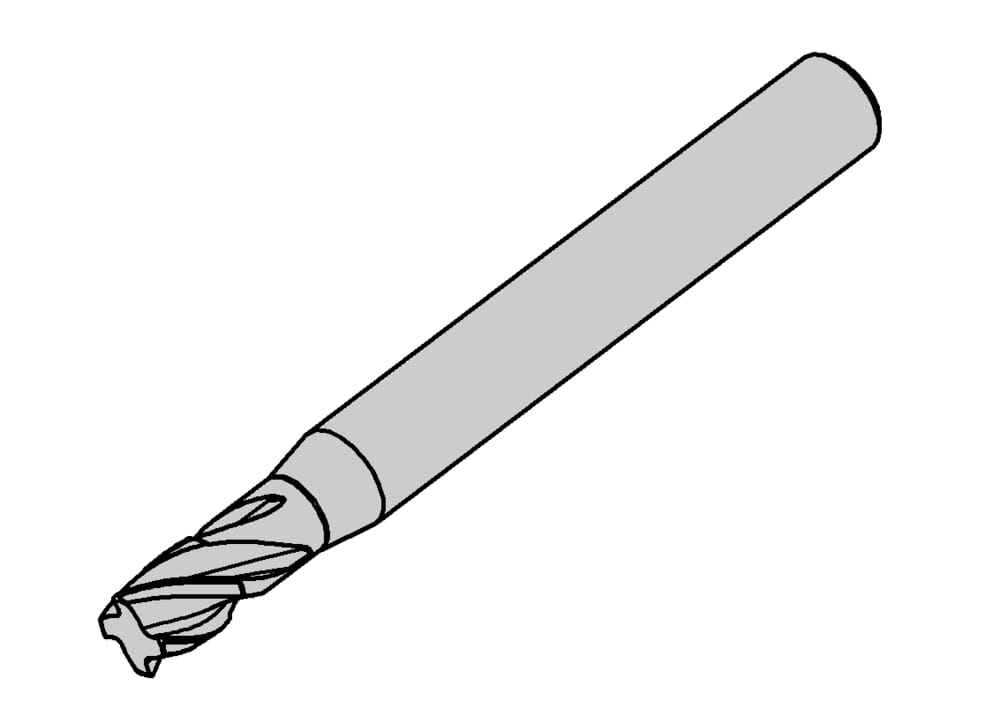

HORN DS-endmill - Ø10.0mm
corner radii = 2.5mm
length = 3xØ
Z = 5 effective DSRV.5.100.250.30 IG3I for Milling
cutting-length-effective-met
0.827 ˝
21 mm
tool-application
rotating
total-length-imp
2.835 ˝
72 mm
neck-diameter-imp
0.374 ˝
9.5 mm
shank-diameter-met
0.394 ˝
10 mm
corner-radius-met
0.098 ˝
2.5 mm
cutting-edge-diameter-imp
0.394 ˝
10 mm
neck-length-imp
1.181 ˝
30 mm
