DSRV.5.040.020.20 IG3I
Recommended:
Also suitable for:
Material number DSRV504002020IG3I

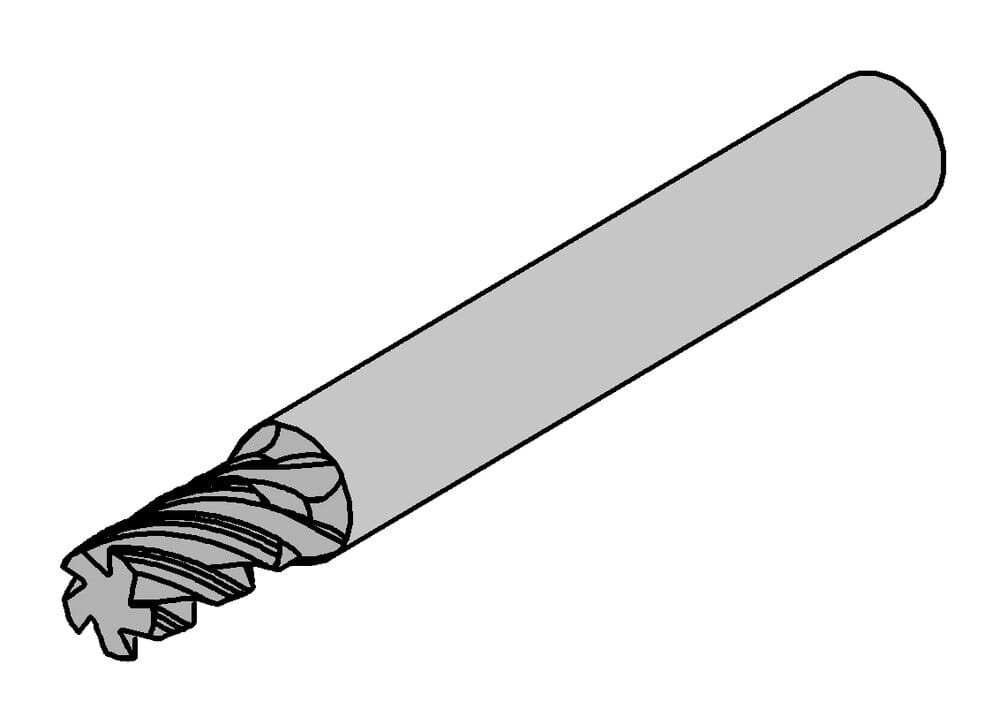

HORN DS-endmill - Ø4.0mm
corner radii = 0.2mm
length = 2xØ
Z = 5 effective DSRV.5.040.020.20 IG3I for Milling
Effective cutting length (l2)
0.236 ˝
6 mm
tool-application
rotating
Total length (l1)
1.969 ˝
50 mm
Neck diameter (d3)
0.15 ˝
3.8 mm
Shank diameter (d2)
0.236 ˝
6 mm
Corner radius (r)
0.008 ˝
0.2 mm
Cutting diameter (d1)
0.157 ˝
4 mm
Neck length (l3)
0.315 ˝
8 mm
