DSRV.5.040.010.30 TSTK
Material number DSRV504001030TSTK

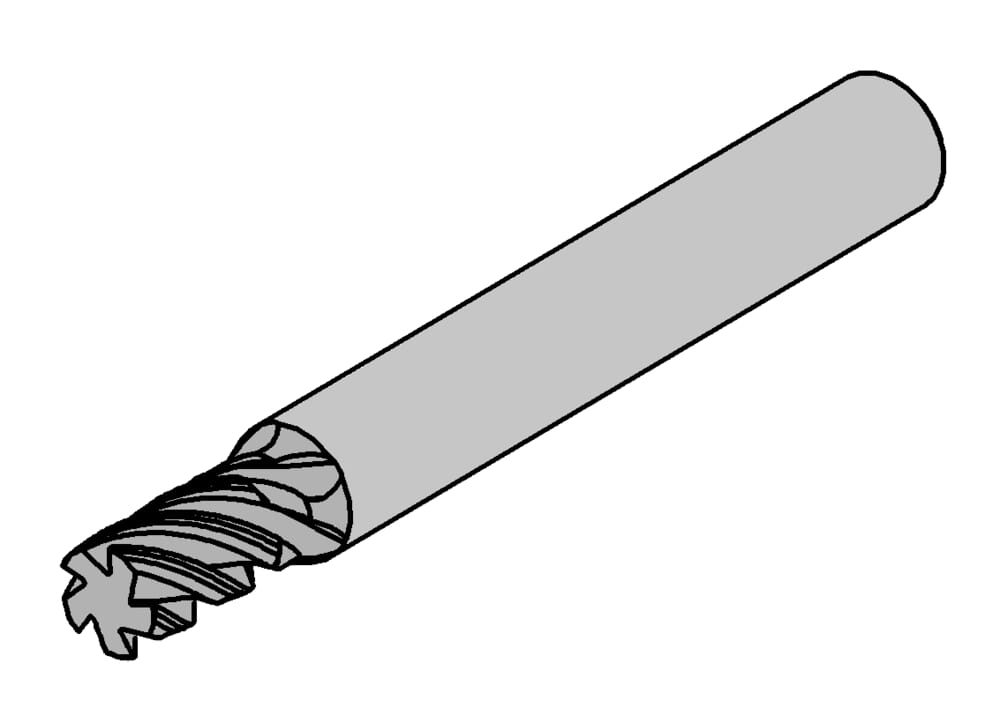

HORN DS-end mill Ø2 R0,1 2xO Z5 DSRV.5.040.010.30 TSTK for Milling
Effective cutting length (l2)
0.354 ˝
9 mm
us-cutting
Yes
tool-application
rotating
Total length (l1)
2.244 ˝
57 mm
Neck diameter (d3)
0.15 ˝
3.8 mm
Shank diameter (d2)
0.236 ˝
6 mm
Corner radius (r)
0.004 ˝
0.1 mm
Cutting diameter (d1)
0.157 ˝
4 mm
Neck length (l3)
0.472 ˝
12 mm
