DSRV.4.080.100.20 TSTK
Material number DSRV408010020TSTK

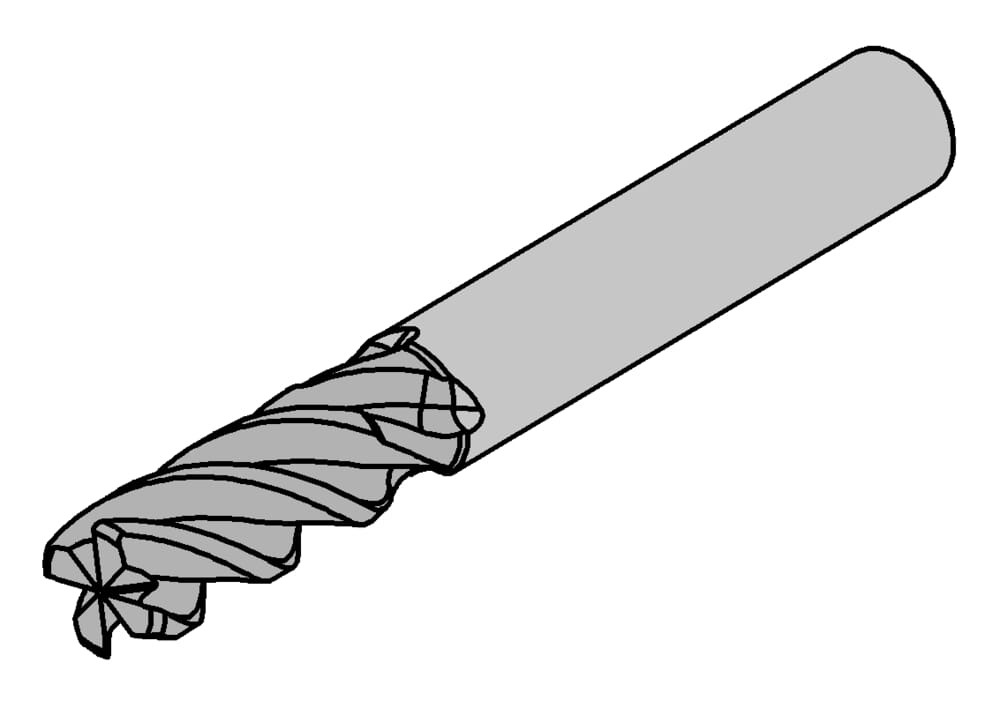

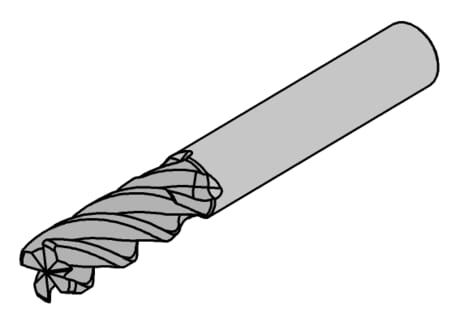

HORN DS-end mill Ø8 R1 2xØ Z4 DSRV.4.080.100.20 TSTK for Milling
Effective cutting length (l2)
0.472 ˝
12 mm
us-cutting
Yes
tool-application
rotating
Total length (l1)
2.283 ˝
58 mm
Neck diameter (d3)
0.299 ˝
7.6 mm
Shank diameter (d2)
0.315 ˝
8 mm
Corner radius (r)
0.039 ˝
1 mm
Cutting diameter (d1)
0.315 ˝
8 mm
Neck length (l3)
0.63 ˝
16 mm
| Downloads | |
|---|---|
| DSRV_4_080_100_20_TSTK-ISO.XML | Download |
| DSRV_4_080_100_20_TSTK-DIN.XML | Download |
| Download all files | |
